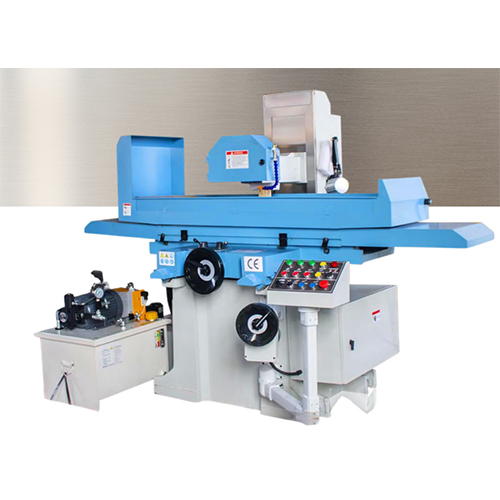

FHSeries Hydraulic Surface Grinder

Name: FHSeries Hydraulic Surface Grinder
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 794259 INR
Availability: InStock

Price 794259 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FHSeries Hydraulic Surface Grinder Specification

Machine Type
Industrial Grinding Machine

Frequency
50 Hz

Frame Type
Heavy duty structure

Lubricating System
Automatic lubrication

Control System
Hydraulic Control Panel

Cooling System
Integrated coolant system

Features
Sturdy construction, smooth operation, precision-ground bed

Model No
FH Series

Voltage
380V/415V

Accuracy
High-precision machining

Noise Level
Low

Drive
Hydraulic

Power Rating
3 Phase, 50 Hz

Motor Power
3 HP - 5 HP

Production Capacity
Depends on material & operation

Operating Temperature
Up to 45C

Connectivity Options
Standard electrical connectivity

Product Type
Hydraulic Surface Grinder

Technology
Hydraulic Mechanism

Power Source
Electric

Operating Type
Automatic/Semi-Automatic

Power
3 HP - 5 HP

Pressure
Hydraulic pressure system

Surface Treatment
Paint Coated

Dimension (L*W*H)
Varies by model, e.g. 2100 x 1700 x 1800 mm

Weight (kg)
Approx. 1200 - 2000 kg

Color
Blue and White

Usage & Applications
Surface grinding of metal components, precision engineering, tool rooms, automobile parts

Standard Accessories
Diamond dresser, wheel flange, grinding wheel, tools box

Grinding Wheel Size
200-250 mm Diameter

Table Travel
Full Hydraulic/Auto

Hydraulic Oil Tank Capacity
40-60 Liters

Electrical Panel
Conforms to ISI Standard

Max Grinding Width
200 mm to 500 mm

Bed Material
Cast Iron, stress relieved

Safety Protection
Overload protection, Emergency stop

Coolant Pump
Heavy-duty Electric Pump

Table Size
Up to 600 x 300 mm (varies by model)

Finishing
Precision ground surface finish

Vertical Feed
Automatic / Manual

Cross Feed
Automatic / Manual

Wheel Head
Rigid, vibration-free structure

Max Grinding Length
500 mm to 1200 mm

Spindle Speed
2800 RPM

Clamping System
Electromagnetic Chuck (optional)

FHSeries Hydraulic Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7-10 Days

FHSeries Hydraulic Surface Grinder About

Experience the splendiferous mastery of the FHSeries Hydraulic Surface Grinder-a top-rated solution for precision grinding tasks. This exceptional machine boasts an enlightened hydraulic system and a sizzling spindle speed of 2800 RPM, ensuring seamless and efficient performance. Its robust, cast-iron bed offers a vibration-free, ephemeral grinding experience with high accuracy. Equipped with an integrated coolant system, automatic lubrication, and sturdy construction, this industrial marvel is engineered for heavy-duty applications. Ideal for fine surface finishing in tool rooms or engineering workshops, it exemplifies superior craftsmanship, safety, and reliability.

Outstanding Versatility & Competitive Advantages

The FHSeries Hydraulic Surface Grinder stands out with its dual operating types-automatic and semi-automatic-making it ideal for both specific and general-purpose metal surface grinding. Perfectly suited for tool rooms, precision engineering, and automobile part fabrication, this grinder ensures high-precision machining. Its primary advantages include a hydraulic control system, low noise levels, and a precision-ground bed, delivering efficiency and reliability for industrial-grade operations.

Domestic Market Leadership & Policies

Commanding a strong presence across India, the FHSeries Hydraulic Surface Grinder reaches major industrial zones and engineering hubs. On receiving a formal Purchase Order or Quotation request, samples and technical details can be arranged promptly before Arrival. Certified to ISI standards and backed by rigorous stress-relief quality checks, its certifications and domestic outreach foster customer confidence and ensure supreme product satisfaction throughout the quotation-to-delivery process.

FAQ's of FHSeries Hydraulic Surface Grinder:

Q: How does the FHSeries Hydraulic Surface Grinder enhance surface finishing?

A: The grinder utilizes a high-speed spindle and precision-ground bed, combined with an integrated coolant system, to deliver exceptionally smooth and consistent surface finishes for metal components.

Q: What types of materials and applications is this grinder best suited for?

A: It is ideally used for surface grinding of metal parts in precision engineering, automobile manufacturing, tool rooms, and other industrial settings requiring high-precision finishes.

Q: When should I consider using manual versus automatic feed controls?

A: Manual feeds are recommended for delicate tasks requiring close operator adjustments, while automatic feeds enhance productivity for repetitive or larger-scale grinding operations.

Q: Where is the FHSeries Hydraulic Surface Grinder available for purchase?

A: This grinder is distributed throughout India via reputable exporters, manufacturers, suppliers, and traders. Interested buyers can request a quotation or purchase order from authorized sellers.

Q: What are the main safety features included with this grinder?

A: The machine comes with overload protection, an emergency stop function, and a sturdy, vibration-free frame to ensure safe and stable operation in industrial environments.

Q: How does the hydraulic mechanism benefit the grinding process?

A: The hydraulic mechanism delivers smooth table travel and consistent pressure, resulting in accurate, high-quality surface grinding with minimal operator effort.
