CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel

Product Video

CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel

Name: CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 571000.0 INR
Availability: InStock

571000.0 INR/Piece

Get a Price/Quote

Product Details:

Model No FDK 7725
Operating Temperature 5C to 40C
Noise Level <70 dB
Machine Type CNC Wire Cut
Cooling System Water circulation cooling
Voltage 380 V
Connectivity Options USB, RS232
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel Price And Quantity

Minimum Order Quantity 1 Piece
Price 571000.0 INR/Piece

Power Consumption Less than 4 kW/hr
Travel (X/Y) 320 mm x 250 mm
Max Workpiece Height 280 mm
Electrical Insulation IP54 rated
Machine Bed Material Cast Iron
Control Panel Touch control interface
Safety Features Emergency stop, overheat protection, overload protection
Input Method Keyboard, USB
Software Compatibility Supports G-code, CAD/CAM integration
Wire Diameter Supported 0.15-0.25 mm
Max Cutting Speed 200 mm2/min
Min Surface Roughness Ra 1.6 m
Service Support On-site installation & training available
Wire Feed System Automatic constant tension
Table Size 550 mm x 380 mm
Input Phase 3 Phase
Guide Rail Material Hardened steel precision rails
Cutting Taper 6/80 mm
Display LCD digital display
Memory 8 MB internal, external USB support
Maximum Table Load 300 kg

CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel Product Specifications

Operating Type Automatic
Pressure Ambient
Lubricating System Centralized automatic lubrication
Control System FDK CNC Controller
Power 3.2 kW
Frame Type Heavy duty rigid frame
Production Capacity High
Weight (kg) 1250 kg
Drive Servo drive
Frequency 50/60 Hz
Motor Power 0.75 kW
Features Digital display, high precision, stable performance
Usage & Applications Industrial
Accuracy 0.002 mm
Product Type Other
Power Source Electricity
Surface Treatment Powder Coated
Color White & Blue
Power Rating 3.2 kW
Cooling System Water circulation cooling
Dimension (L*W*H) 1700 mm x 1300 mm x 1800 mm
Voltage 380 V
Connectivity Options USB, RS232
Operating Temperature 5C to 40C
Warranty 1 Years
Machine Type CNC Wire Cut
Noise Level <70 dB
Technology Wire EDM (Electrical Discharge Machining)
Model No FDK 7725

Power Consumption Less than 4 kW/hr
Travel (X/Y) 320 mm x 250 mm
Max Workpiece Height 280 mm
Electrical Insulation IP54 rated
Machine Bed Material Cast Iron
Control Panel Touch control interface
Safety Features Emergency stop, overheat protection, overload protection
Input Method Keyboard, USB
Software Compatibility Supports G-code, CAD/CAM integration
Wire Diameter Supported 0.15-0.25 mm
Max Cutting Speed 200 mm2/min
Min Surface Roughness Ra 1.6 m
Service Support On-site installation & training available
Wire Feed System Automatic constant tension
Table Size 550 mm x 380 mm
Input Phase 3 Phase
Guide Rail Material Hardened steel precision rails
Cutting Taper 6/80 mm
Display LCD digital display
Memory 8 MB internal, external USB support
Maximum Table Load 300 kg

CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel Trade Information

Delivery Time 15-20 Days

Product Description

NAME: FDK SERIES FEATURES Low machine running cost Low machine maintenance Function of taper processing Functions of interpolation of straight line and circular arc Automatic center find, edge find operation and pulse at wire break Function of memorizing when power off and auto-stop after processing Auto lock after giving run command Good rigidity, running placidly, strong function, convenient and reliable operation C-type column, T-type bed and "pyramid" type cross slide structure design Water tank with multi-stage filtration and high-pressure pump Servo motor with mechanical limit and travel limit Fast programming function of complex multi-hole graphics Multi-tasking capability in front and back stag

Superior Precision and Durability

Built with a heavy-duty cast iron frame and precision-hardened steel guide rails, the FDK 7725 ensures long-lasting rigidity and consistent accuracy. Its advanced servo drive system and automatic wire feed deliver remarkable cutting precision down to 0.002 mm, making it suitable for intricate parts and fine surface finishes required in diverse industrial sectors.

User-Friendly Automation and Controls

The machine is equipped with a modern touch control interface, LCD digital display, and supports USB and keyboard input for seamless operation. Offering compatibility with G-code and CAD/CAM integration, operators can easily import design files, automate processes, and monitor progress with real-time data for improved productivity.

Comprehensive Support and Safety

On-site installation and training are available to minimize downtime and accelerate productivity. The machine includes multiple safety features like IP54 insulation, emergency stop, and overload/overheat protection, providing peace of mind during continuous operation. Regular support from the manufacturer ensures smooth maintenance and operation.

FAQ's of CNC Wire Cut FDK 7725 Machine, Automatic Grade 320-250 Travel:

Q: How does the CNC Wire Cut FDK 7725 ensure high cutting accuracy?

A: The FDK 7725 utilizes a servo drive system, hardened steel precision rails, and an automatic constant tension wire feed system, all of which contribute to its impressive cutting accuracy of up to 0.002 mm, ideal for detailed industrial components.

Q: What types of files and software are compatible with this machine?

A: This wire EDM machine supports G-code, is compatible with CAD/CAM software, and offers both direct keyboard and USB data input, making it easy to integrate with standard design and manufacturing workflows.

Q: When is on-site installation and training provided for the FDK 7725?

A: On-site installation and training are provided upon delivery of the machine, ensuring operators are fully equipped to use all features efficiently and safely right from the start.

Q: Where can I use the CNC Wire Cut FDK 7725 machine?

A: The FDK 7725 is designed for industrial applications and is suitable for factories, manufacturing workshops, and tool rooms requiring precision wire EDM operations.

Q: What is the process of operating the FDK 7725?

A: After setup and loading the workpiece, designs can be imported via USB or keyboard entry. The automatic control panel facilitates the operation, and the machine executes wire EDM cutting based on the programmed instructions, offering real-time digital monitoring.

Q: What are the primary benefits of using this CNC wire cut machine?

A: Users benefit from high production capacity, superior cutting precision, ease of integration with CAD/CAM systems, advanced safety features, and reliable service support, ensuring efficient and quality-driven operations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Wirecut EDM Machine' category

Semi-Automatic Edm Wire Cut Machine Price : 677000 INR/Piece Minimum Order Quantity : 1 Operating Type : Other, SemiAutomatic Usage & Applications : Industrial Product Type : Other, SemiAutomatic Edm Wire Cut Machine Power Source : Other, Electric Power : 3 kW Warranty : 1 YEAR Weight (kg) : 800 Kilograms (kg) Surface Treatment : Other, Paint Coated Color : White Technology : Other, Electro Discharge Machining (EDM) Frame Type : Heavy Duty Structure Production Capacity : 1525 pieces/day Lubricating System : Automatic Control System : Other, Microprocessorbased CNC Control Motor Power : 0.75 kW Drive : Servo Motor Drive Frequency : 50 Hz Features : Digital Panel, Auto Wire Threading, High Precision, Low Power Consumption Accuracy : 0.005 mm Power Rating : 3 kW Voltage : 380 V Connectivity Options : USB Port, RS232 Interface Dimension (L*W*H) : 1700 mm x 1450 mm x 1850 mm Cooling System : Water Circulation Noise Level : 75 dB Machine Type : SemiAutomatic Operating Temperature : 540C Model No : EDMWC6040

Send Inquiry

Fostex EDM Machine With Z Axis LM Price : 1051000.0 INR/Piece Minimum Order Quantity : 1 Operating Type : Automatic Usage & Applications : Industrial Product Type : Other, Fostex EDM Machine With Z Axis LM Power Source : Electricity Power : 3 kVA Warranty : 1 Years Weight (kg) : 1100 kg Surface Treatment : Other, Polished Color : Grey & Blue Technology : Other, Electro Discharge Machining Frame Type : Heavy duty welded frame Production Capacity : High (Multiple Shifts Operation) Lubricating System : Automatic Lubrication Control System : Other, CNC Based Control Panel Motor Power : 2.5 kW Drive : Servo Motor Drive Frequency : 50 Hz Features : High Precision, Rigid Structure, Digital Display, Linear Motion Z Axis, Low Maintenance Accuracy : 0.005 mm Power Rating : 3.2 HP Voltage : 415 V Connectivity Options : USB, Ethernet Dimension (L*W*H) : 1400 x 1200 x 2100 mm Cooling System : Dielectric Fluid Cooling Noise Level : Low Machine Type : EDM Sinker Operating Temperature : 10C to 45C Model No : Fostex Z LM Series

Send Inquiry

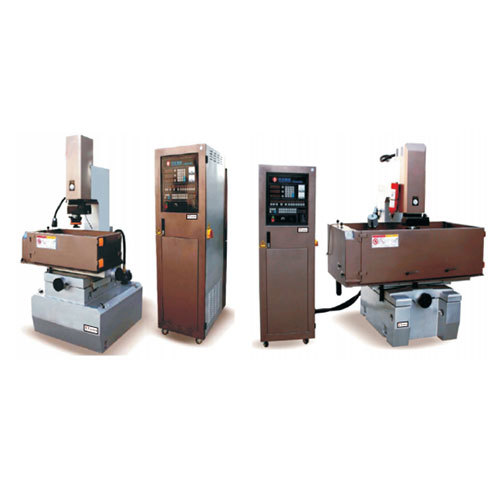

ZNC Electric Discharge Tooling Machine Price : 852000 INR/Unit Minimum Order Quantity : 1 Operating Type : Automatic Usage & Applications : Industrial Product Type : Cutting Machine Power Source : Electricity Power : 3 kVA Weight (kg) : 1500 kg Surface Treatment : Coated Color : Blue/Grey Technology : Other Frame Type : Heavy Duty Cast Iron Production Capacity : 110 moulds/day Lubricating System : Automatic Control System : Other, ZNC Controller Motor Power : 1.5 kW Drive : Servo Motor Frequency : 50/60 Hz Features : High Stability, Fine Finishing, Digital Display Panel Accuracy : 0.01 mm Power Rating : 3 kW Voltage : 380V Connectivity Options : Standard Interface (No Ethernet/USB) Dimension (L*W*H) : 1050 x 950 x 2200 mm Cooling System : Oilbased Dielectric Circulation Noise Level : <80 dB Machine Type : Tooling EDM Operating Temperature : 545C Model No : ZNC450
