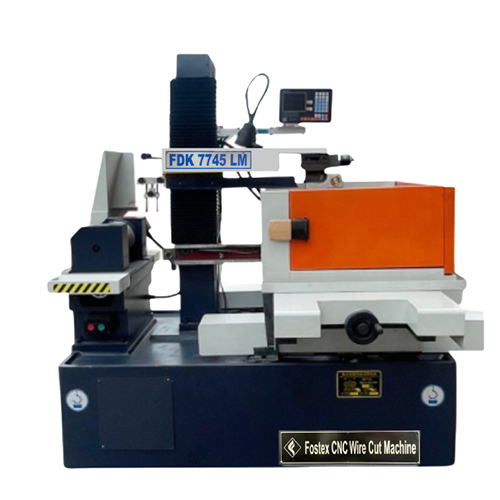

FDK-7755 FDK Series EDM Wire Cut

Name: FDK-7755 FDK Series EDM Wire Cut
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1088550 INR
Availability: InStock

Price 1088550 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDK-7755 FDK Series EDM Wire Cut Specification

Frequency
50/60 Hz

Noise Level
Low

Features
Stable Structure, Smooth Operation, High Precision, LCD Display, Easy Maintenance

Production Capacity
Single Piece to Batch Production

Accuracy
0.005 mm

Control System
CNC

Motor Power
750 W

Voltage
380V

Machine Type
EDM Wire Cut Machine

Model No
FDK-7755

Connectivity Options
USB, RS-232

Drive
Servo Drive

Operating Temperature
5C - 40C

Power Rating
3 kW

Lubricating System
Automatic Lubrication

Frame Type
Monoblock Frame

Cooling System
Water-based Dielectric

Product Type
EDM Wire Cut Machine

Technology
Electro Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Surface Treatment
Paint Coated

Dimension (L*W*H)
1700 x 1050 x 1800 mm

Weight (kg)
1000 kg

Color
Blue & Orange

Usage & Applications
Metal Cutting, Die/Mould Manufacturing, Tool Room Operations

Max Workpiece Height
300 mm

Wire Feed Speed
1.5 - 12 m/min

Cutting Taper
6 at 80 mm Thickness

Table Travel (X Y)
775 550 mm

Wire Diameter
0.15 - 0.25 mm

Input Method
USB/Manual

Repeatability
0.002 mm

Tank Capacity
70 L

Display Screen
Digital LCD Monitor

Language Supported
English

Working Speed
60 - 200 mm2/min

Max Workpiece Weight
800 kg

Protection System
Overload & Short-circuit Protection

FDK-7755 FDK Series EDM Wire Cut Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1-2 Week

FDK-7755 FDK Series EDM Wire Cut About

Experience the extraordinary cutting precision of the FDK-7755 FDK Series EDM Wire Cut machine-a hot deal for any industrial setting. Featuring a splendid working speed range of 60-200 mm2/min and a crowning table travel of 775 x 550 mm, this scarce machine is designed for reliable, high-precision jobs. Get unmatched repeatability (0.002 mm), robust overload protection, an easy-to-use digital LCD, and compatibility with batch or single-piece production. Don't miss out-get this exceptional solution now for your metal cutting and die/mould manufacturing needs.

Features, Functions, and Commercial Applications

The FDK-7755 EDM Wire Cut machine stands out with stable structure, smooth operation, and high precision accuracy up to 0.005 mm. It boasts an advanced water-based cooling system and automatic lubrication, ensuring longevity and superior performance. Its monoblock frame and CNC control provide robust support for metal cutting, tool room operations, and die/mould manufacturing. A splendid addition for exporters, manufacturers, wholesalers, and service providers seeking unparalleled versatility and production efficiency.

Sample Availability, Order Processing, and Supply

Sample units of the FDK-7755 FDK Series EDM Wire Cut are available upon purchase order confirmation. Our remarkable supply ability guarantees timely order processing and seamless delivery. Once your order is finalized, samples are swiftly handed over as per the specified sample policy, ensuring you experience the machine's precision firsthand. We support each request efficiently, reflecting our commitment to excellent service and hassle-free transactions for customers across India and beyond.

FAQ's of FDK-7755 FDK Series EDM Wire Cut:

Q: How does the FDK-7755 EDM Wire Cut achieve its high precision and stable operation?

A: The FDK-7755 uses advanced electro discharge machining (EDM) technology, a monoblock frame, precise servo drive, and an automatic lubrication system to maintain stability and achieve top-tier precision up to 0.005 mm repeatability.

Q: What types of commercial applications is this machine suitable for?

A: This machine is ideal for metal cutting, die and mould manufacturing, and tool room operations. Its robust design and CNC control make it perfect for batch or single-piece production in various industrial sectors.

Q: Where can customers get sample units of the FDK-7755 EDM Wire Cut?

A: Sample units are available through our purchase order process. Once a formal order is placed and processed, samples can be provided as per our sample policy guidelines.

Q: What is the process for purchasing and receiving this machine?

A: Begin by submitting a purchase order. After order processing is completed, the machine or sample is promptly handed over, focusing on swift turnaround and customer satisfaction.

Q: What are the key benefits of using this EDM wire cut machine over conventional cutting solutions?

A: The FDK-7755 offers high accuracy, smooth operation, low noise, easy maintenance, advanced safety features, and supports both manual and USB input methods. Its efficiency and versatile capabilities make it a crowning choice for demanding manufacturing needs.
