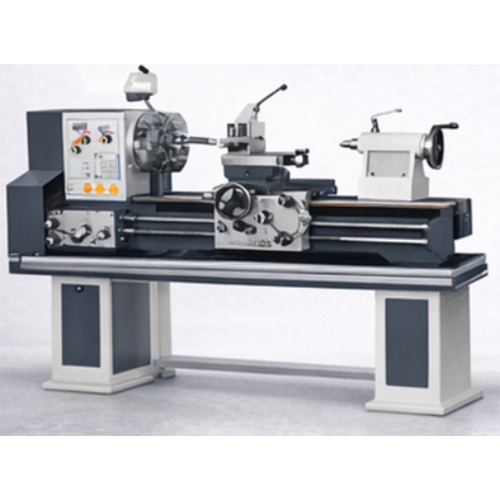

FLG-E558 FLG Series Geared Lathe Machine

Send Inquiry

Request To Call Back

FLG-E558 FLG Series Geared Lathe Machine

Name: FLG-E558 FLG Series Geared Lathe Machine
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 292621 INR
Availability: InStock

Price 292621 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

FLG-E558 FLG Series Geared Lathe Machine Specification

Accuracy
High Precision 0.02 mm

Frame Type
Rigid Cast Iron Frame

Machine Type
Lathe

Features
Heavy Duty Bed, Precision Slideways, Gearhead Design

Cooling System
Yes (Integrated Coolant Pump)

Production Capacity
One Job per Cycle

Model No
FLG Series

Noise Level
Within Industrial Standards (<85 dB)

Frequency
50 Hz

Drive
Geared Headstock

Lubricating System
Automatic Lubrication

Operating Temperature
0C to 45C

Power Rating
3 kW (Standard)

Motor Power
3 HP

Voltage
415 V AC

Product Type
Geared Lathe Machine

Technology
Conventional Mechanical

Power Source
Electric

Power
2 - 5 HP (Depending on Model)

Surface Treatment
Paint Coated

Dimension (L*W*H)
Varies by Model (Typical: 2000 x 915 x 1340 mm)

Weight (kg)
1000 - 1500 kg (Approx.)

Color
White & Grey

Usage & Applications
Turning, Threading, Drilling, Facing, Grooving

Carriage Travel
650 mm - 1400 mm

Spindle Speed Range
40 - 1600 RPM

Chuck Size
200 mm

Bed Width
250 mm - 325 mm

Floor Space Required
Approximately 2400 x 1050 mm

Swing Over Bed
350 mm - 660 mm (Model Dependent)

Tool Post Type
4-Way Tool Post

Thread Range
Metric: 0.5 - 7 mm, Imperial: 4 - 56 TPI

Coolant Motor
0.09 kW

Electrical Protection
Overload and Short Circuit Protection

Distance Between Centers
750 mm / 1000 mm / 1500 mm (Model Options)

Tailstock Travel
140 mm

Maximum Turning Diameter
Up to 500 mm

Spindle Bore
38 mm - 52 mm

FLG-E558 FLG Series Geared Lathe Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
1-2 Week

FLG-E558 FLG Series Geared Lathe Machine About

Unlock supreme precision and performance with the FLG Series Geared Lathe Machine-an enlightened choice for professionals demanding sought-after reliability. Designed with a heavy-duty bed and robust cast iron frame, it supports versatile work from turning to threading, all at an unbeatable price. Enjoy must-have features like high-precision 0.02 mm accuracy, integrated coolant system, and a 4-way tool post. Whether for large or small batches, this lathe suits various industrial and workshop settings, delivering consistent output, operator safety, and advanced mechanical technology.

Versatile Applications & Superior Methodology

The FLG Series Geared Lathe Machine is ideal for turning, threading, drilling, facing, and grooving. Application is straightforward: metals are securely mounted, and cutting tools engage along precision slideways. Its superb bed structure and 4-way tool post enable general and specific machining, adapting flawlessly to automotive, fabrication, repair, or prototype workshops. The paint-coated surface ensures longevity, while its high-precision controls facilitate reliability for repeated industrial use.

Delivery, Supply, and Packaging Assurance

Valuation of the FLG Series Geared Lathe Machine is enhanced by prompt shipment, with typical delivery within 2-4 weeks based on location and customization. We uphold continuous supply ability to fulfill volume orders at the lowest price point. Each unit is carefully packaged in sturdy, industrial-grade crates, ensuring optimal protection during transit and storage. Trust our dedicated exporter and supplier network in India for secure, timely, and cost-effective delivery every time.

FAQ's of FLG Series Geared Lathe Machine:

Q: How does the FLG Series Geared Lathe Machine benefit my machining operations?

A: The FLG Series offers high-precision turning, threading, and drilling, ensuring accuracy up to 0.02 mm. Its rigidity, robust cast iron frame, and integrated lubrication optimize outcomes for industrial, fabrication, or repair applications.

Q: What is the process for operating the FLG Series Geared Lathe Machine?

A: Operation involves securing the workpiece, adjusting the geared headstock, and using the manual control panel to set parameters. The integrated coolant and lubrication systems ensure efficient performance and tool longevity.

Q: Where is the FLG Series Geared Lathe Machine typically used?

A: It is widely used in manufacturing units, engineering workshops, automotive repair shops, and metalworking industries for both general machining and specialized applications.

Q: When can I expect delivery after placing my order?

A: Depending on order details and location, delivery is typically executed within 2 to 4 weeks, with prompt shipping handled by our established logistics network.

Q: What kind of surface treatment and protection features does this lathe have?

A: The lathe features a durable paint-coated surface, automatic lubrication, and advanced overload and short circuit protection for extended machine life and operator safety.

Q: How is the FLG Series Geared Lathe Machine packaged before shipping?

A: Each unit is expertly packaged in industrial-grade, reinforced crates that safeguard all components, minimizing risk during transportation and ensuring it reaches you in pristine condition.
