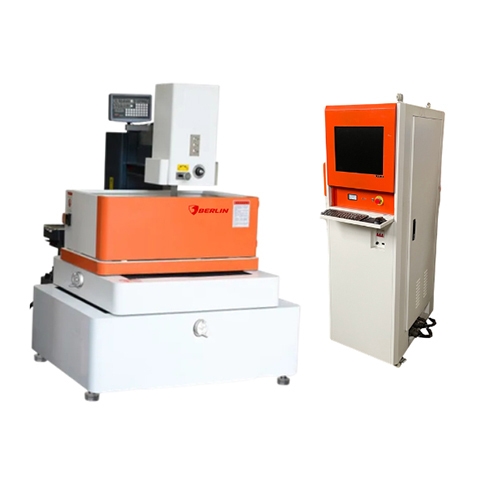

FZT-630 FZT Series EDM Wire Cut

Get a Price/Quote

MOQ : 1 Piece

FZT-630 FZT Series EDM Wire Cut Specification

Operating Temperature
5C - 40C

Production Capacity
1-2 Units per day

Lubricating System
Automatic Lubrication

Control System
CNC Digital Control

Power Rating
3 kW

Voltage
380 V

Connectivity Options
USB interface, RS232 port

Frame Type
Robust Cast Iron Frame

Motor Power
Stepper motor 750W

Frequency
50/60 Hz

Drive
Servo/Stepper drive system

Accuracy
0.005 mm

Features
High precision, stable structure, user-friendly interface

Machine Type
CNC EDM Wire Cut

Noise Level
Low

Cooling System
Water Cooling

Model No
FZT-630

Product Type
EDM Wire Cut Machine

Technology
Electrical Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Surface Treatment
Painted/Coated

Dimension (L*W*H)
1100 x 900 x 1800 mm

Weight (kg)
1200 kg

Color
White & Orange

Usage & Applications
Precision cutting of hard metals, die and mold manufacturing

Safety Features
Overload Protection, Emergency Stop Switch

Max Workpiece Weight
500 kg

Max Workpiece Height
300 mm

Table Size
600 x 400 mm

Wire Diameter Range
0.15 - 0.25 mm

Display Type
LCD Touch Screen

Installation Type
Floor Mounted

Electric Consumption
2.5 kW/h

Software Compatibility
G Code, DXF format support

Axis Travel (X/Y/Z)
400 x 320 x 300 mm

Cutting Taper
3/80 mm

Servo System
Closed Loop

FZT-630 FZT Series EDM Wire Cut Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1-2 Week

FZT-630 FZT Series EDM Wire Cut About

Unlock a new era in precision engineering with the famed FZT-630 FZT Series EDM Wire Cut. Engineered for praiseworthy accuracy and stability, this trending CNC machine accommodates wire diameters from 0.15 to 0.25 mm and delivers remarked results with its unbeatable price and robust cast iron frame. Designed for die and mold manufacturing, its powerful 3 kW servo/stepper drive delivers consistent performance while user-friendly LCD touch screen control streamlines operation. Enjoy G Code and DXF compatibility, top-notch safety features, and seamless connectivity, all with low noise and energy efficiency.

Premium Features & Precision Applications

The FZT-630 FZT Series EDM Wire Cut stands out for its high precision (up to 0.005 mm), stable cast iron structure, and automatic lubrication. Praised for versatility, it excels in precision cutting of hard metals, making it ideal for die and mold manufacturing, tool shops, and intricate engineering tasks. This model is suitable for exporters, manufacturers, service providers, suppliers, and traders seeking reliability and efficiency in demanding industrial environments.

Domestic Reach & Safe Delivery

Serving India's main domestic market, the FZT-630 ensures secure delivery through careful drop-off and freight arrangements. Each unit is packaged meticulously to prevent damage during transport. Sample policies are available upon inquiry, with options tailored to clients' needs. Drop-off and delivery schedules are coordinated to provide a smooth handover, ensuring the machine arrives ready for immediate installation and use.

FAQ's of FZT-630 FZT Series EDM Wire Cut:

Q: How does the FZT-630 EDM Wire Cut ensure precision cutting?

A: The FZT-630 features a robust cast iron structure, precise closed-loop servo system, and user-friendly digital CNC controls, allowing for a high cutting accuracy of 0.005 mm on hard metal workpieces.

Q: What applications is the FZT-630 suitable for?

A: This model is ideal for precision cutting in die and mold manufacturing, tool shops, and for working with challenging hard metals, supporting both exporters and industry suppliers.

Q: How is the FZT-630 delivered and installed?

A: The FZT-630 is securely packed and delivered via safe freight channels, arranged as per drop-off schedules coordinated with the client. Professional installation is recommended for optimal operation.

Q: Where can I use the FZT-630 EDM Wire Cut?

A: It's suitable for industrial environments which require high-precision metal cutting, supported by its durable construction and advanced features, making it perfect for manufacturing and engineering sectors.

Q: What safety features does the FZT-630 include?

A: Safety is paramount with overload protection and an emergency stop switch built into the system, ensuring both operator and machine safety during operation.

Q: What are the connectivity options for the FZT-630?

A: The machine comes equipped with USB interface and RS232 port for seamless data transfer, facilitating easy communication with design and programming tools.
