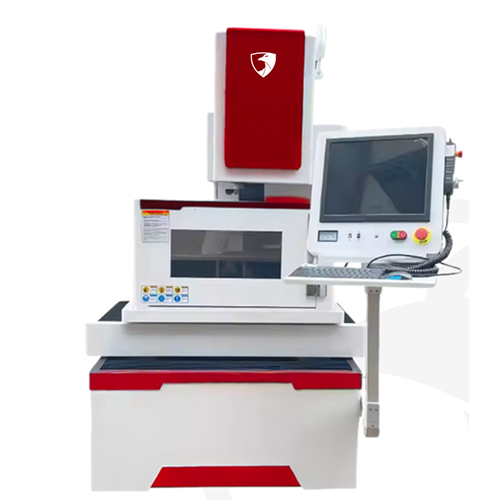

SF-320X SFX Series EDM Wire Cut

Name: SF-320X SFX Series EDM Wire Cut
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1707530 INR
Availability: InStock

Price 1707530 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SF-320X SFX Series EDM Wire Cut Specification

Power Rating
3-5 kW

Model No
SFX Series

Drive
Servo Motor

Noise Level
Low

Connectivity Options
USB, LAN

Operating Temperature
10 to 40C

Features
High cutting speed, smooth surface finish, stable structure

Cooling System
Water Cooling

Lubricating System
Automatic Lubrication

Machine Type
CNC EDM Wire Cut

Frequency
50/60 Hz

Production Capacity
Continuous operation

Voltage
220/380 V

Accuracy
0.01 mm

Frame Type
Closed-frame design

Motor Power
750 W

Product Type
EDM Wire Cut Machine

Technology
Electrical Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
3-5 kW (varies by model)

Surface Treatment
Powder Coated

Dimension (L*W*H)
Approx. 1200 x 900 x 1700 mm

Weight (kg)
750-1000 kg

Color
White & Red

Usage & Applications
Mold making, tool & die industry, manufacturing precision parts

Service Support
Onsite Installation and Training provided

Cutting Fluid
Deionized Water

Positioning Accuracy
0.005 mm

Software Compatibility
Compatible with CAD/CAM software

Standard Accessories
Tool Kit, Spare Nozzles, User Manual

Display Type
LCD Touch Screen

Power Phase
Three Phase

Max Workpiece Weight
500 kg

Wire Speed
7-11 m/s

Safety Features
Overload protection, Emergency stop button

Optional Accessories
Chiller Unit, Oil Mist Collector

Repeatability
0.002 mm

Wire Tension System
Automatic

Installation
Floor Mounted

User Interface
Multi-language support

Table Travel (X/Y/Z)
320 x 400 x 300 mm

Max Workpiece Thickness
200 mm

Wire Diameter
0.15 ~ 0.25 mm

SF-320X SFX Series EDM Wire Cut Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
2-3 Week

SF-320X SFX Series EDM Wire Cut About

Discover the featured SFX Series EDM Wire Cut-a scarce and praiseworthy solution for modern tooling demands. With a spectacular table travel of 320 x 400 x 300 mm and ace performance, it handles workpieces up to 500 kg and 200 mm thickness. An LCD touch screen, automatic tension, ace accuracy (0.005 mm), and seamless CAD/CAM compatibility elevate productivity. Designed for precision mold making and tool & die manufacturing, this powder-coated, floor-mounted marvel is in limited supply-order now to secure your competitive edge!

SFX Series EDM Wire Cut: Commercial Uses and Competitive Advantages

The SFX Series EDM Wire Cut is ideal for mold making, tool & die manufacturing, and precision parts production. Its closed-frame design ensures stability, while automatic lubrication and deionized water cutting fluid keep operations smooth. This ace machine is suitable for continuous, high-volume production, thanks to high cutting speeds and advanced safety features. Competitive advantages include outstanding positioning accuracy, seamless CAD/CAM software compatibility, and multi-language support, making it a praiseworthy asset for exporters, manufacturers, and traders in India.

SFX Series EDM Wire Cut: Payment Terms, FOB Port, and Sample Policy

For the SFX Series EDM Wire Cut, payment terms are structured to optimize your expenditure. The proposal amount includes standard packing & dispatch, ensuring safe delivery. FOB port options are available upon request, convenient for international and domestic buyers alike. Samples can be arranged, subject to conditions, to help you evaluate the machine before commitment. Detailed cost breakdown and formal quotations are provided, making it easy to assess your investment and plan your expenditure efficiently.

FAQ's of SFX Series EDM Wire Cut:

Q: How does the SFX Series EDM Wire Cut process ensure high-precision results?

A: The machine achieves exceptional precision with positioning accuracy of 0.005 mm and repeatability of 0.002 mm, aided by a closed-frame design and automatic wire tension system. Its CNC control ensures consistent, high-quality results on every job.

Q: What are the primary commercial uses of the SFX Series EDM Wire Cut?

A: This machine is primarily used in the mold making, tool & die industry, and for manufacturing high-precision components essential in modern industrial applications.

Q: When is onsite installation and training provided for the SFX Series EDM Wire Cut?

A: Onsite installation and training are arranged promptly after order confirmation and delivery, ensuring your team is ready for immediate and efficient operation.

Q: Where can I order or request a sample of the SFX Series EDM Wire Cut?

A: Orders and sample requests can be made directly through our sales channels; simply contact our team for guidance on placing orders or arranging product demonstrations in India.

Q: How does the wire tension system benefit operational effectiveness?

A: The automatic wire tension system maintains optimal wire performance, reducing manual intervention and boosting both cutting speed and surface finish quality.

Q: What are the power requirements and connectivity options for this EDM machine?

A: The SFX Series EDM Wire Cut operates on a three-phase power supply (3-5 kW) and is compatible with USB and LAN connectivity, allowing easy integration with existing infrastructure and data networks.
