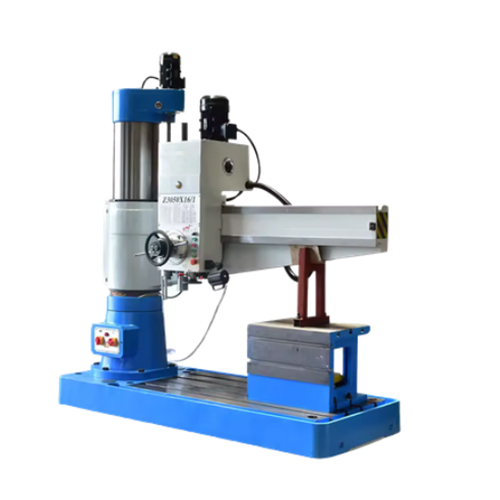

Z3050x16 Radial Drill Machine

Name: Z3050x16 Radial Drill Machine
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 710469 INR
Availability: InStock

Price 710469 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Z3050x16 Radial Drill Machine Specification

Features
Heavy Duty Structure, Ease of Operation, Adjustable Arm

Frequency
50 Hz

Motor Power
2 HP

Machine Type
Radial Arm Drilling Machine

Model No
Varies, Common Example: Z3050

Voltage
220V/380V/415V

Frame Type
Rigid Cast Iron

Power Rating
1.5 - 2 KW

Accuracy
High Precision Up to 0.01 mm

Cooling System
Optional Coolant System

Production Capacity
Variable / As Required

Operating Temperature
0C to 45C

Lubricating System
Centralized Lubrication

Drive
Gear Drive

Noise Level
Low

Product Type
Radial Drill Machine

Technology
Conventional/Mechanical

Power Source
Electric

Power
2 HP

Surface Treatment
Powder Coated

Dimension (L*W*H)
Approx. 2200 x 900 x 2450 mm

Weight (kg)
Approximately 1700 kg

Color
Blue & White

Usage & Applications
Drilling, Boring, Reaming, Tapping in metalworking industries

Spindle Taper
MT 4/5

Max. Drilling Diameter
50 mm

Up/Down Movement of Arm
400 mm

Clamping Type
Hydraulic/Manual

Spindle Feed
Manual/Power Feed

Arm Length
1250 mm

Base Size
1800 x 900 mm

Main Motor RPM
1440 rpm

Swing (Max)
1600 mm

Spindle Travel
315 mm

No. of Spindle Speeds
8 to 16 (Model Dependent)

Table Size
600 x 400 mm

Column Diameter
300 mm

Z3050x16 Radial Drill Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
2-3 Week

Z3050x16 Radial Drill Machine About

Highlighted for its immaculate engineering, the Radial Drill Machine is a popular choice among metalworking professionals seeking prime performance. Featuring a scarce combination of a 50 mm max drilling diameter and a robust 1250 mm arm length, this machine boasts a gorgeous heavy-duty structure with a rigid cast iron frame and a powder coated finish. The adjustable arm ensures exceptional flexibility, while high precision accuracy (up to 0.01 mm) and hydraulic/manual clamping guarantee seamless operation. Ideal for drilling, boring, reaming, and tapping, this machine sets the benchmark for quality and reliability.

Versatile Industrial Applications and User Guidance

This Radial Drill Machine is used in a variety of metalworking applications including drilling, reaming, boring, and tapping. Direction of use involves securing the workpiece on the provided table, adjusting the arm as required, and selecting appropriate spindle speeds via manual or electrical panels. Suitable for use in workshops, fabrications, and manufacturing industries, this machine is engineered for both beginners and experienced operators, offering advanced features while ensuring ease of use and consistent results.

Sample Policy, Delivery Timeline, and Secure Packaging

Sample policy allows buyers to request product demonstrations or samples before purchase, ensuring full satisfaction before finalizing the sale price. Express Shipping options are available to expedite delivery, with products typically shipped within a specified delivery time based on order quantity and destination. Each Radial Drill Machine is carefully packaged with shock-absorbing material to prevent transit damage, ensuring immaculate condition and safe arrival at your facility.

FAQ's of Radial Drill Machine:

Q: How does the adjustable arm provide flexibility during operation?

A: The adjustable arm allows the operator to position the drilling head for different workpiece sizes and drilling angles, enhancing convenience and accuracy for various applications.

Q: What is the process for switching between manual and power feed modes?

A: Switching feed modes is straightforward: operators can easily toggle between manual and power feed using the control panel, allowing smooth transitions depending on specific job requirements.

Q: When is the optional coolant system recommended for usage?

A: The coolant system is recommended when working on prolonged drilling operations or with harder metals, as it helps regulate temperature, ensures tool longevity, and maintains precision.

Q: Where can this Radial Drill Machine be typically installed?

A: This machine is suitable for installation in metalworking workshops, fabrication plants, manufacturing industries, tool rooms, and educational institutions requiring robust drilling capabilities.

Q: What are the primary benefits of hydraulic versus manual clamping?

A: Hydraulic clamping offers faster and more secure workpiece fixation, increasing productivity and safety. Manual clamping, while effective, may take more time but provides a traditional control approach depending on operator preference.
