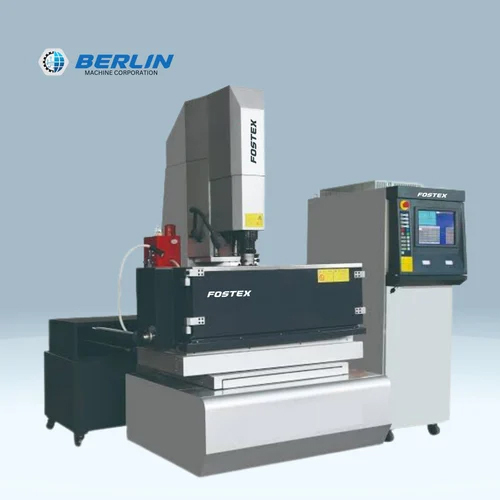

Znc Sinker
852000.0 INR/Unit
Product Details:
- Product Type Other
- Technology Other
- Power Source Electricity
- Operating Type Automatic
- Surface Treatment Coated
- Color White & Orange
- Warranty 1 Year
- Click to View more
X
Znc Sinker Price And Quantity
- 1 Unit
- 852000.0 INR/Unit
Znc Sinker Product Specifications
- 1 Year
- Inudustrial
- White & Orange
- Other
- Other
- Automatic
- Electricity
- Coated
Znc Sinker Trade Information
- 10 Unit Per Month
- 15-20 Days
Product Description
FEATURES
- The structure of the machine is designed by computer analysis of tension, compression and reaction force, so as to ensure the mechanical precision forever.
- The castings are cast with FC-35 resin sand. They are durable and have the same precision after natural wind and various treatments.
- Machinery design uses computer aided design (CAD) to persist in processing the invariant structure of the machine body to ensure the processing accuracy.
- The sliding track adopts V-shape and plane design. It slides lightly under heavy pressure and has excellent precision. 5. The working table surface is grinded by high-wave heat treatment, and the surface is not easy to wear.
- Both X and Y axes adopt imported or equivalent double nut ball screw, which has light transmission and convenient use.
- The spindle adopts linear sliding track, which ensures the precision and durability forever.
- The trawler adopts imported Tiefron guide rail veneer.
| Technical Specification| Model | ZNC350 | ZNC350 | ZNC450 | ZNC540 | ZNC600 | ZNC1060 | |
| Workbench Size (mm) | 500x300 | 600300 | 700400 | 800480 | 1000600 | 1400900 | |
| Work slot inner size (mm) | 750x420x280 | 780X500X350 | 1040X600X450 | 1250X770X500 | 1680X900X650 | 2000X1130X770 | |
| Y-axis left & right travel (mm) | 300 | 350 | 450 | 500 | 600/700 | 1000 | |
| X-axis front &rear travel (mm) | 200 | 250 | 350 | 400 | 500 | 700 | |
| Z-axis travel (mm) | Servo model | 300 | 160 | 200 | 220 | 400 | 450/600 |
| Manual model | 300 | 180 | 250 | 260 | NA | NA | |
| Maximum distance between spindle and worktable (mm) | | 420 | 500 | 580 | 750/980/1230 | 906/1110/1260 | |
| Maximum electrode weight (kg) | | 30 | 50 | 80 | 100 | 200 | |
| Maximum working weight (kg) | 1000 | 680 | 1000 | 1500 | 2000 | 4000 | |
| EDM Machine weight (kg) | | 1000 | 1300 | 1600 | 4000 | 6000 | |
| Packing Box size (mm) | 1400x1050x2250 | 1460X1490X223 | 1450X1300X2200 | 1570X1600X2400 | 2120X1930X2540 | 2580X2730X3210 | |
| Filter box capacity (L) | 200 Liters | 200 Liters | 240 Liters | 300 Liters | 840 Liters | 2000 Liters | |
| Filter weight (kg) | Built in | Built in | 180 | 200 | 300 | 1000kg *2 | |
Durable Coated Surface
Our Znc Sinker is expertly finished with a coated surface treatment, ensuring superior resistance to wear and corrosion. This feature extends the operational life of the machine, making it a reliable choice for demanding industrial environments. The coating also provides a smooth finish, minimizing maintenance requirements and boosting overall productivity.
Automatic Power and Operation
The Znc Sinker operates automatically with an electrical power source, allowing continuous processing for industrial tasks. Designed to maximize efficiency, this machine reduces manual intervention and ensures consistent results, streamlining industrial workflows. Its automated functionality makes it suitable for both high-volume and precision applications.
FAQ's of Znc Sinker:
Q: How does the automatic operation of the Znc Sinker benefit industrial users?
A: The Znc Sinker's automatic operation streamlines machining processes, reducing manual labor and minimizing the risk of human error. This leads to greater efficiency, consistent results, and increased productivity in industrial applications.Q: What is the surface treatment applied to the Znc Sinker, and why is it important?
A: A coated surface treatment is applied to the Znc Sinker, offering enhanced durability and rust resistance. This treatment safeguards the machine against industrial wear and prolongs its service life, ensuring reliable performance.Q: When should I schedule maintenance for the Znc Sinker?
A: Routine maintenance should be carried out as recommended in the machine's user manual or at regular industrial intervals, typically every few months or following intensive operation, to guarantee optimal function and longevity.Q: Where can the Znc Sinker be utilized?
A: The Znc Sinker is designed for various industrial environments requiring precise and automatic machining operations, including manufacturing plants, workshops, and specialized fabrication units.Q: What is the process to install or set up the Znc Sinker?
A: Installation involves connecting the machine to a reliable electrical source and following manufacturer guidelines for automatic operation. Professional setup ensures safe and efficient use from the outset.Q: How does the one-year warranty benefit customers?
A: The one-year warranty provides assurance against manufacturing defects, allowing customers to operate the Znc Sinker with confidence. Support and service are available during the warranty period to address any unexpected issues.Tell us about your requirement
