BXW6136 - Universal Knee Type Milling Machine

Send Inquiry

Request To Call Back

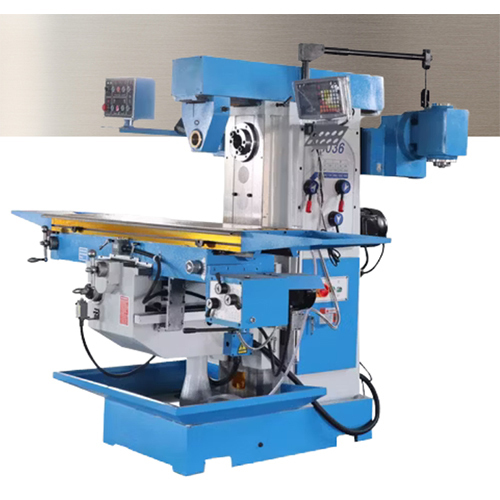

BXW6136 - Universal Knee Type Milling Machine

Name: BXW6136 - Universal Knee Type Milling Machine
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1727168 INR
Availability: InStock

Price 1727168 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BXW6136 - Universal Knee Type Milling Machine Specification

Operating Temperature
5C to 40C

Production Capacity
High, varies per application

Model No
BXW6136

Cooling System
Integrated coolant pump

Frequency
50 Hz

Lubricating System
Automatic lubrication

Noise Level
<82 dB

Motor Power
3 kW

Machine Type
Universal Milling Machine

Control System
Manual mechanical controls

Accuracy
High precision, suitable for detailed metalwork

Voltage
380V / 415V (Three Phase)

Features
Swiveling table, Vertical & horizontal head, Rigid structure, Heavy-duty spindle

Frame Type
Box frame, heavy-duty

Drive
Gear-driven

Power Rating
3 kW

Product Type
Universal Knee Type Milling Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Manual

Power
3 kW

Surface Treatment
Painted/Coated

Dimension (L*W*H)
2550 x 2150 x 1950 mm

Weight (kg)
1950 kg

Color
Blue / Silver

Usage & Applications
Metalworking, Milling, Precision Engineering, Workshop Machinery

Maximum Load on Table
400 kg

Quill Travel
70 mm

T-Slot (No./Width/Distance)
3 / 14 mm / 80 mm

Distance from Spindle Center to Column
340 mm

Rapid Feed (X/Y/Z)
2300/1540/770 mm/min

Table Size
1320 x 360 mm

Table Travel (X/Y/Z)
900/340/400 mm

Main Spindle Motor
3 kW, 4 HP

Swivel Angle of Table
45

Minimum Feed (X/Y/Z)
23/16/8 mm/min

Electricals
380V/415V, 3 Phase, 50 Hz

Coolant Motor Power
0.09 kW (120W)

Horizontal Spindle Speed Range
60-1800 rpm

Vertical Spindle Speed Range
60-1800 rpm

Spindle Taper
ISO 50

Distance from Spindle Nose to Table
30-430 mm

BXW6136 - Universal Knee Type Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1-2 Week

BXW6136 - Universal Knee Type Milling Machine About

Reserve the BXW6136 Universal Knee Type Milling Machine today and experience the splendid synergy of power and precision. This unrivaled machine, finished in striking blue and silver, is built to meet the ephemeral demands of today's metalworking sector while ensuring the lowest price for its class. With unparalleled rigidity, high precision, and the finest usability, the BXW6136 boasts a heavy-duty ISO 50 spindle, a rapid feed system, and a substantial table load. Its performance and reliability remain unmatched for workshops seeking distinguished milling excellence.

Material Features, Application Places & Machine Benefits

Crafted with a robust box frame, the BXW6136 is the epitome of durability and strength, tailored for high-precision metalworking. Its manual control system makes it ideal for workshops, precision engineering centers, and general manufacturing. This splendid machine features a swiveling table, heavy-duty gear-driven heads, and integrated automatic lubrication. Its versatility and adaptability make it equally suitable for detailed metalcraft and demanding industrial applications, assuring optimal results with every operation.

Delivery Information, Sample Policy & FOB Port

BXW6136 delivery is streamlined for both domestic markets and global distribution, with stock ready to dispatch. Lead time varies depending on order volume, typically within 2-4 weeks. Sample policies can be discussed based on client requirements. Products are shipped from our primary FOB port in India, ensuring timely delivery and responsive support from order to installation. Reach out to learn about current availability and secure prompt delivery for your operation.

FAQ's of BXW6136 - Universal Knee Type Milling Machine:

Q: How does the BXW6136 milling machine ensure high precision in metalworking?

A: The BXW6136 features a rigid box frame construction, heavy-duty spindle, and accurate manual controls, all of which contribute to maintaining high precision and consistency in metalworking processes.

Q: What are the main applications of the BXW6136 Universal Knee Type Milling Machine?

A: This milling machine is ideal for workshops, precision engineering, metalworking, and manufacturing settings where flexibility, durability, and accuracy are paramount.

Q: Where can I use the BXW6136 milling machine?

A: The BXW6136 is suitable for a wide range of environments, including machine shops, metal fabrication units, and industrial manufacturing facilities requiring versatile and reliable milling solutions.

Q: When can I expect delivery if I order the BXW6136 for the domestic market?

A: Generally, delivery for domestic orders is arranged within 2-4 weeks, depending on stock status and order volume, ensuring prompt availability for immediate use.

Q: What process does the BXW6136 use for cooling and lubrication?

A: The machine is equipped with an integrated coolant pump and automatic lubricating system, providing efficient cooling and smooth operation during demanding tasks.

Q: How does the BXW6136 benefit my metalworking operations?

A: With high production capacity, precision accuracy, ease of manual operation, and rugged construction, the BXW6136 enhances productivity and delivers consistent, quality results for a variety of milling tasks.
