BML6436CL - Universal Swivel Head Milling Machine

Send Inquiry

Request To Call Back

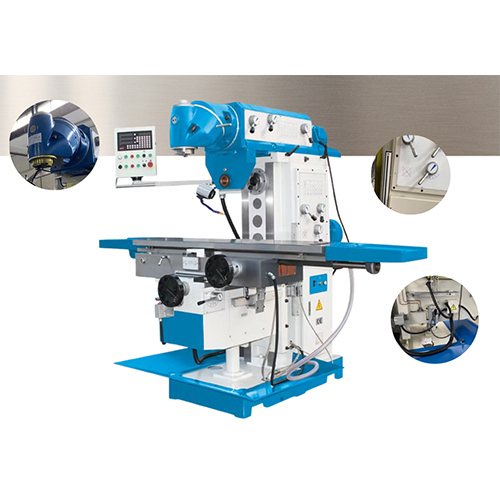

BML6436CL - Universal Swivel Head Milling Machine

Name: BML6436CL - Universal Swivel Head Milling Machine
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 2285023 INR
Availability: InStock

Price 2285023 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BML6436CL - Universal Swivel Head Milling Machine Specification

Cooling System
Integrated coolant system

Features
Universal head swivels 360, heavy-duty construction, power feeds on all axes

Frame Type
Rigid heavy-duty frame

Control System
Hand wheel and levers / Optional Digital Readout

Connectivity Options
Optional DRO connectivity

Operating Temperature
5C - 45C

Noise Level
<80 dB

Production Capacity
High (Depends on operator and process)

Lubricating System
Automatic Lubrication

Model No
BML6436CL

Accuracy
High precision (as per manufacturer standards)

Machine Type
Universal Swivel Head

Motor Power
5 HP

Drive
Gear drive

Voltage
380V / 415V

Frequency
50 Hz

Power Rating
3.7 kW

Product Type
Universal Swivel Head Milling Machine

Technology
Conventional Milling

Power Source
Electric

Operating Type
Manual & Semi-Automatic

Power
3.7 kW (5 HP)

Surface Treatment
Paint Coated

Dimension (L*W*H)
Approx. 2300 x 1750 x 2000 mm

Weight (kg)
2200 kg (approx)

Color
Blue & White

Usage & Applications
Metal cutting, slotting, drilling, facing, and other machining operations

Main Spindle Motor
3.7 kW (5 HP)

Max Swivel Angle
45 Universal Head

Main Spindle Taper
ISO 40

Max Load on Table
500 kg

T-Slots (No. / Width / Distance)
3 / 18 mm / 80 mm

Table Size
1370 x 360 mm

Coolant Pump Power
0.09 kW

Rapid Feed
X/Y/Z: 2300/770/770 mm/min

Main Spindle Speed Range
58-1800 rpm (12 Steps)

Table Travel (X/Y/Z)
900 x 360 x 360 mm

BML6436CL - Universal Swivel Head Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1-2 Week

BML6436CL - Universal Swivel Head Milling Machine About

Introducing the BML6436CL Universal Swivel Head Milling Machine-a breathtaking evolution in conventional milling technology, now available at a truly rare, lowest price promotion. Engineered with incomparable precision, this top-ranking machine features a 1370 x 360 mm table, 45 swivel universal head, and power feeds on all axes, delivering ultimate versatility and productivity. Heavy-duty construction and a robust 5 HP main spindle motor ensure high production capacity, while the integrated coolant and lubrication systems maximize efficiency. Ideal for metal cutting, drilling, facing, and slotting with unparalleled accuracy.

Specific Usage, Application Surface & Extra Features

The BML6436CL Universal Swivel Head Milling Machine is perfect for comprehensive metalworking tasks, such as cutting, slotting, drilling, and facing. Its versatile 45 swivel head, together with rapid feed capability and integrated coolant system, makes it ideal for precision machining on various metal surfaces. The machine's automatic lubrication and optional digital readout enhance operational efficiency, while its rigid, paint-coated frame ensures durability during robust manufacturing demands.

Main Domestic Market, Packaging & Dispatch Details

The BML6436CL caters to significant domestic markets across India, addressing diverse machining requirements with efficiency and minimal expenditure. Each unit is safely packed to prevent transit damage, ensuring prompt shipment and reliable delivery from our designated FOB port. Our packing and dispatch process guarantees that the machine arrives in pristine condition, ready for immediate installation in workshops or production units-supporting seamless operations with minimal downtime.

FAQ's of BML6436CL - Universal Swivel Head Milling Machine:

Q: How does the universal swivel head benefit machining operations?

A: The universal swivel head on the BML6436CL enables a 360-degree rotation and a 45 maximum swivel, allowing machinists to perform complex angular cuts, slotting, and drilling with greater precision and flexibility on a single setup.

Q: What applications is the BML6436CL suitable for?

A: This milling machine is ideal for a range of metalworking processes including metal cutting, slotting, drilling, facing, and general machining tasks across diverse industries that require high accuracy and heavy-duty performance.

Q: What features enhance the BML6436CL's durability and ease of use?

A: Durability is ensured by its robust, heavy-duty frame and paint-coated surface. Ease of use is heightened by power feeds on all axes, automatic lubrication, an integrated coolant system, and optional digital readout connectivity for enhanced accuracy.

Q: Where is the BML6436CL mainly distributed within India?

A: The BML6436CL serves key domestic markets throughout India, with a distribution network providing support and service to major industrial hubs, exporters, service providers, suppliers, traders, and wholesalers.

Q: What does the packaging and dispatch process involve?

A: Each BML6436CL machine undergoes a secure packing process designed to prevent damage during shipment. Units are dispatched promptly, ensuring minimal waiting time and safe arrival at the designated FOB port, optimizing expenditure and ensuring operational readiness.
