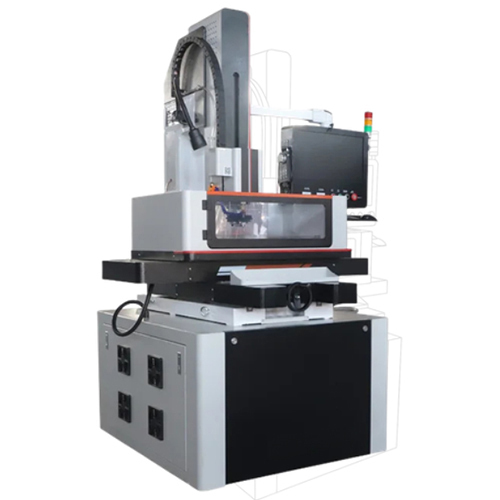

CNC550-S CNC EDM DRILL MACHINE

Name: CNC550-S CNC EDM DRILL MACHINE
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1398040 INR
Availability: InStock

Price 1398040 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CNC550-S CNC EDM DRILL MACHINE Specification

Model No
CNC550-S

Drive
Servo Motor Driven

Machine Type
CNC EDM Drill

Production Capacity
High

Cooling System
Integrated Water Cooling

Lubricating System
Automatic Lubrication System

Power Rating
3 kW

Frequency
50/60 Hz

Connectivity Options
USB & LAN

Frame Type
Heavy Duty Rigid Frame

Accuracy
+/ 0.01 mm

Voltage
380V, 3 Phase

Features
User-friendly interface, Precise Drilling, High Speed Operation

Control System
CNC Controller

Noise Level
Low

Operating Temperature
Ambient

Motor Power
1.5 kW

Product Type
CNC EDM Drill Machine

Technology
Electro Discharge Machining (EDM)

Power Source
Electric

Operating Type
CNC Automatic

Power
3 kW

Pressure
Standard Working Pressure

Surface Treatment
Powder Coated

Dimension (L*W*H)
1200 x 950 x 2000 mm

Weight (kg)
1200 kg

Color
White/Black with Silver Accents

Usage & Applications
For drilling small, deep holes in hard metals; suitable for mold, tool, die industries

Tank Capacity
60 Liters

Travel (X/Y/Z)
400 / 300 / 300 mm

Alarm System
Automatic Fault Alarm & Emergency Stop

Software Compatibility
Standard G-code Supported

Electrode Diameter Range
0.2-3.0 mm

Working Speed
Up to 60 mm/min

Guide Rail Type
Linear Guide Rails

Screen Display
15-inch LCD Touchscreen

Positioning Accuracy
0.005 mm

Table Size
550 x 350 mm

Max Drilling Depth
300 mm

Max Load on Table
400 kg

CNC550-S CNC EDM DRILL MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1-2 Week

CNC550-S CNC EDM DRILL MACHINE About

Explore the CNC550-S CNC EDM DRILL MACHINE - engineered for precision and optimal performance in the hardest metals. With a crackjack working speed up to 60 mm/min and a finest positioning accuracy of 0.005 mm, this powerhouse delivers unbeatable deep-hole drilling for the mold, tool, and die industries. Benefit from favorable reviews and the best price in India, thanks to its heavy-duty design, advanced CNC controller, and versatile electrode support. Enjoy seamless operation with a user-friendly interface, reliable safety alarms, and integrated cooling and lubricating systems.

Application, Usage, Features: CNC550-S CNC EDM DRILL MACHINE

The CNC550-S CNC EDM DRILL MACHINE is tailored for deep-hole drilling in hard metals, making it ideal for mold, tool, and die manufacturing. Application media includes various conductive metals. Direction of use is fully automated via CNC controller, ensuring operator ease. Notable features: high-speed operation, automatic lubrication, intelligent fault alarms, precise linear rails, and advanced EDM drilling technology-all in a robust heavy-duty frame.

Certifications, Payment Terms & FOB Port: Seamless Acquisition

Our CNC550-S machine comes fully certified for industrial export, offering secure packaging for global shipping. We support multiple payment terms to manage your expenditure efficiently. Our principal FOB port in India ensures expedited delivery. These attributes, combined with our commitment to quality and reliability, make this offer highly attractive for buyers seeking the best in advanced EDM drilling technology.

FAQ's of CNC550-S CNC EDM DRILL MACHINE:

Q: How does the CNC550-S ensure precise drilling operations?

A: The CNC550-S achieves precise drilling with a positioning accuracy of 0.005 mm, linear guide rails, servo motor drives, and a CNC controller that supports standard G-code programming.

Q: What media can be used with this machine for drilling applications?

A: The machine is suitable for use on a wide range of hard, conductive metals, including steel, carbide, and alloys, ideal for mold, tooling, and die manufacturing.

Q: Where is the CNC550-S typically installed and used?

A: This EDM drill machine is predominantly used in tool rooms, manufacturing workshops, and industries focusing on mold, die, and hard metal parts fabrication.

Q: What is the maintenance process for the CNC550-S machine?

A: Maintenance involves regular checks of the integrated automatic lubrication and water cooling systems, along with periodic inspections of the electrodes, guide rails, and software updates via USB or LAN connectivity.

Q: What are the primary benefits of using the CNC550-S CNC EDM DRILL MACHINE?

A: Users benefit from high drilling speed, excellent depth capacity, automatic alarms for safety, a user-friendly touchscreen interface, and consistent accuracy, making it an exceptional choice for deep hole drilling tasks.
