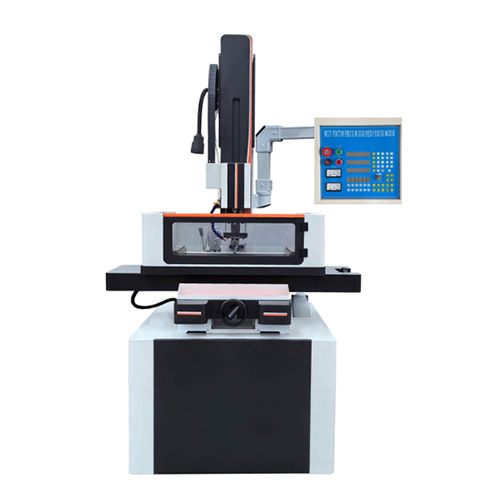

FDD703.55 ADVANCE EDM DRILL MACHINE

Name: FDD703.55 ADVANCE EDM DRILL MACHINE
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 960486 INR
Availability: InStock

Price 960486 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDD703.55 ADVANCE EDM DRILL MACHINE Specification

Drive
Servo Motor Driven

Noise Level
<75 dB during operation

Features
Touchscreen, memory storage, automatic electrode alignment, robust frame

Power Rating
3.5 kW

Control System
CNC Controller with touchscreen interface

Frame Type
Box frame

Frequency
50/60 Hz

Model No
FDD703.55 Advance

Operating Temperature
10C to 40C

Connectivity Options
USB, LAN

Machine Type
Advance EDM Drill

Motor Power
1.5 kW Spindle Motor

Voltage
380V

Production Capacity
Continuous operation with minimal downtime

Lubricating System
Automatic lubrication

Cooling System
Integrated dielectric fluid cooling system

Accuracy
0.01 mm (subject to conditions and electrode)

Product Type
EDM Drill Machine

Technology
Electro-Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
3.5 kW

Pressure
Standard working pressure (as per EDM drilling operations)

Surface Treatment
Powder Coated/Finished

Dimension (L*W*H)
Approx. 1400 x 1200 x 1750 mm

Weight (kg)
700 kg

Color
White & Black with Orange trims

Usage & Applications
Drilling micro holes in hard metals, dies, and mold components

Memory Storage
100+ program slots

Electrode Change System
Manual/Automatic (optional)

Max. Workpiece Height
300 mm

Work Table Size
400 x 250 mm

Max. Table Load
250 kg

Installation Requirement
Stable base, single phase/three phase connection

Positioning Method
Closed-loop with linear scale feedback

Service Support
Onsite and remote technical support available

Axis Movement
X, Y, Z axes programmable

Environmental Compliance
Meets RoHS and CE standards

Applicable Industries
Tool & Die, Aerospace, Medical, Automotive, Electronics

Transport Package
Wooden crate/Seaworthy packing on request

Dielectric Fluid
Deionized Water

Accessories Included
Set of electrodes, dielectric system, operation manual

Electrode Feeding Stroke
300 mm

Display Type
10-inch Industrial Touchscreen Monitor

Safety Features
Overload protection, emergency stop, coolant monitoring

Software Compatibility
Standard G-code, custom drilling cycles

Maintenance
Low and easy to maintain

Working Speed
Up to 5 mm/min (depending on workpiece and electrode)

Max. Electrode Diameter
0.15 - 3.0 mm

FDD703.55 ADVANCE EDM DRILL MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1-2 Week

FDD703.55 ADVANCE EDM DRILL MACHINE About

Experience the acclaimed FDD703.55 ADVANCE EDM DRILL MACHINE-an absolute paragon of precision engineered for advanced industries. For a limited time, benefit from a significant price cut and bring home a virtuoso performer that soars in operational efficiency and accuracy. Its prowess lies in micro hole drilling across Tool & Die, Aerospace, Medical, Automotive, and Electronics sectors. With a robust box frame, servo-driven CNC control, and an intelligent touchscreen interface, this machine supports up to 100+ programs, ensuring continuous production and minimal downtime. Elevate your micro machining experience with this distinguished model.

Versatile Application & Precision Usability

The FDD703.55 ADVANCE EDM DRILL MACHINE is an exceptional choice for professionals working with hard metals, molds, and component drilling in sectors such as Tool & Die, Automotive, Aerospace, Medical, and Electronics. Designed for automatic and programmable operations, it handles various surface types with high precision-down to 0.01 mm. This makes it ideal for applications demanding meticulous micro holes and consistent results on die, molds, and intricate components.

Export Market Details & Estimated Delivery

As a trusted exporter, manufacturer, and supplier in India, we ensure that FDD703.55 ADVANCE EDM DRILL MACHINE reaches your facility with care. Shipped goods depart from our FOB port in India, with delivery time estimated based on your order volume and destination. Our sample policy supports evaluation for bulk buyers, assisting decision-making before confirming larger shipments. We prioritize prompt fulfillment to support both domestic requirements and international export markets.

FAQ's of FDD703.55 ADVANCE EDM DRILL MACHINE:

Q: How does the FDD703.55 ADVANCE EDM DRILL MACHINE enhance precision in micro hole drilling?

A: The machine boasts closed-loop linear scale feedback, CNC control, and a robust frame for reliable accuracy up to 0.01 mm, ensuring fine and precise drilling in diverse hard metal applications.

Q: What industries benefit most from using this EDM drill machine?

A: Industries such as Tool & Die, Aerospace, Medical, Automotive, and Electronics benefit from its micro-drilling capabilities, versatile programming options, and ability to handle complex material requirements.

Q: Where can the FDD703.55 ADVANCE EDM DRILL MACHINE be installed?

A: The machine requires a stable base with single phase or three phase power supply, making it suitable for factories, workshops, or industrial plants involved in specialized machining tasks.

Q: What is the process for maintaining the FDD703.55 ADVANCE EDM DRILL MACHINE?

A: Maintenance is simple and low, with features like automatic lubrication, robust design, and integrated coolant monitoring ensuring consistent performance and easy upkeep.

Q: When can I expect the delivery of my order after purchase?

A: Delivery time depends on order volume and your location. Goods are shipped from our Indian FOB port, and estimates are provided upon order confirmation with tracking for your shipment.
