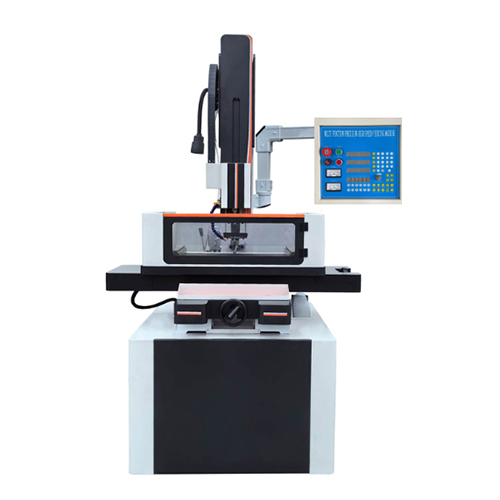

FDD703.40 ADVANCE EDM DRILL MACHINE

Name: FDD703.40 ADVANCE EDM DRILL MACHINE
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 683012 INR
Availability: InStock

Price 683012 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDD703.40 ADVANCE EDM DRILL MACHINE Specification

Motor Power
Servo Motor: 1.5 kW

Machine Type
EDM Drilling Machine

Frame Type
Rigid Frame Structure

Cooling System
Water/Oil Cooling

Control System
CNC (Touch Screen Interface)

Production Capacity
Multiple Holes per Cycle

Power Rating
2.5 kVA

Operating Temperature
5C - 40C

Frequency
50 Hz

Features
High Speed, Automatic Tool Changer, Touch Screen, Precision Drilling

Drive
Servo Drive

Accuracy
0.02 mm

Noise Level
Low

Connectivity Options
USB, LAN

Voltage
220V / 380V AC

Lubricating System
Centralized Lubrication

Model No
FDD703.40

Product Type
EDM Drill Machine

Technology
Electrical Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
2.5 kVA

Surface Treatment
Powder Coated

Dimension (L*W*H)
1200 x 1100 x 1900 mm

Weight (kg)
Approx. 950 kg

Color
White and Black with Orange Borders

Usage & Applications
Hole Drilling in Conductive Materials, Dies, and Molds

Tool Changer
Optional Automatic Tool Changer

Maximum Drilling Depth
400 mm

Maximum Workpiece Weight
150 kg

Working Speed
Up to 60 mm/min

Table Travel (X/Y)
400 x 300 mm

Depth Control
Digital Auto-Stop

Work Table Size
500 x 350 mm

Positioning Method
Linear Guideways

Automatic Lubrication
Yes

Electrode Diameter Range
0.2-3.0 mm

Display Type
7 inch Color Touch Screen

Dielectric Fluid Used
Deionized Water

FDD703.40 ADVANCE EDM DRILL MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1-2 Week

FDD703.40 ADVANCE EDM DRILL MACHINE About

Introducing the FDD703.40 ADVANCE EDM Drill Machine-an exclusive solution engineered for the ineffable precision demanded by today's manufacturers. Renowned for its famed performance, this fully automatic, CNC touch-screen controlled machine achieves working speeds up to 60 mm/min and is customizable for your finest requirements. Capable of drilling up to 400 mm deep with electrode diameters from 0.2-3.0 mm, it is designed for reliability, robust productivity, and exceptional accuracy (0.02 mm). Buy this advanced EDM drilling masterpiece and elevate your operations with state-of-the-art efficiency and versatility.

Commercial Applications and Competitive Edge

The FDD703.40 ADVANCE EDM Drilling Machine is prized for high-speed drilling in conductive materials, dies, and molds, marking it ideal for commercial fabrication, toolmaking, and maintenance shops. Its precision and automatic features confer a competitive advantage, especially when used as a primary or secondary drilling solution. The customizable automatic tool changer and digital depth control allow operators to process multiple jobs efficiently, ensuring every drilling task meets the most exacting standards.

Export Markets, Sample Policy, and FOB Details

Famed in both domestic and international markets, the FDD703.40 ADVANCE EDM Drill Machine enjoys strong sale price competitiveness and steady demand. Leading export destinations span Asia, Europe, and the Middle East. Our sample policy ensures clients review the machine's capabilities firsthand before full-rate orders. The standard FOB port is located in India for global shipment, making the procurement process straightforward for traders, wholesalers, and service providers alike.

FAQ's of FDD703.40 ADVANCE EDM DRILL MACHINE:

Q: How does the FDD703.40 ADVANCE EDM Drill Machine ensure accuracy in drilling?

A: The FDD703.40 features digital auto-stop depth control, CNC touch-screen interface, and high-precision servo drives, providing accuracy up to 0.02 mm for every drilled hole.

Q: What types of industries or applications benefit most from using this EDM drill machine?

A: Industries involved in die and mold fabrication, precision engineering, and electrical component manufacturing will gain the most value, as this machine excels in precision hole creation in conductive materials.

Q: When is it advisable to use the optional automatic tool changer?

A: The automatic tool changer is particularly beneficial during high-volume projects or when multiple electrode diameters are required within the same process, enhancing workflow efficiency and minimizing manual intervention.

Q: Where can the machine be supplied or exported from?

A: The FDD703.40 EDM Drill Machine is supplied and exported from India, with a primary FOB port for easy international shipment to various overseas markets.

Q: What are the process advantages of using deionized water as a dielectric fluid?

A: Using deionized water as the dielectric fluid supports cleaner operation, superior spark generation, and minimal wear on both the electrode and the workpiece, resulting in finer finishes and longer machine life.
