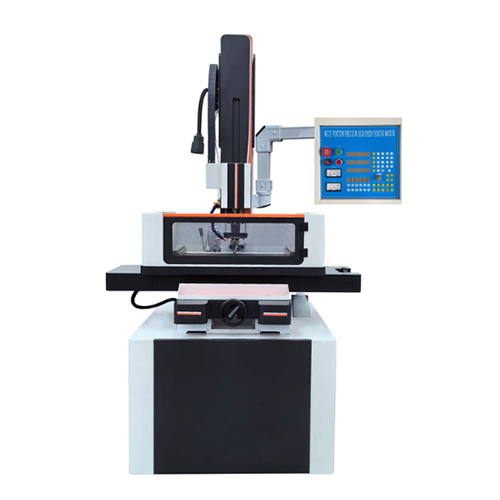

FDD703.30 ADVANCE EDM DRILL MACHINE

Name: FDD703.30 ADVANCE EDM DRILL MACHINE
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 512259 INR
Availability: InStock

Price 512259 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDD703.30 ADVANCE EDM DRILL MACHINE Specification

Connectivity Options
USB, LAN

Frame Type
Rigid Steel Frame

Cooling System
Water/Oil Based Dielectric Cooling

Model No
AEDM-180X

Motor Power
1.2 kW

Production Capacity
30-120 holes/hour

Machine Type
Drill Type EDM

Accuracy
0.02 mm

Frequency
50/60 Hz

Lubricating System
Centralized Automatic Lubrication

Features
Slant worktable, high precision, rapid drilling, easy maintenance

Drive
Servo Motor Drive

Noise Level
<70 dB

Operating Temperature
5C - 40C

Voltage
220V/380V

Power Rating
2.5 kW

Product Type
EDM Drill Machine

Technology
Electro Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
2.5 kW

Surface Treatment
Powder Coated

Dimension (L*W*H)
1000 mm x 800 mm x 1700 mm

Weight (kg)
750 kg

Color
White/Black with Orange Accents

Usage & Applications
Hole drilling in hard metals, aerospace, mold making, tool manufacturing

Water Tank Capacity
60 Liters

Backup Battery
Available for Control System

Work Table Size
400 mm x 300 mm

Working Speed
Up to 50 mm/min

Power Consumption
Below 3 kW

Spindle Speed
Variable, up to 1800 rpm

Maximum Workpiece Height
300 mm

Axis Travel (X/Y/Z)
300 mm / 200 mm / 350 mm

Electrode Diameter Range
0.2 mm - 3 mm

Maximum Drilling Depth
300 mm

Interface Display
7-inch Color Touchscreen

FDD703.30 ADVANCE EDM DRILL MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1-2 Week

FDD703.30 ADVANCE EDM DRILL MACHINE About

Introducing the splendiferous ADVANCE EDM DRILL MACHINE-our new release engineered for rare, top-tier performance in demanding industrial settings. This sublime machine boasts a variable spindle speed up to 1800 rpm, supports electrode diameters from 0.2 to 3 mm, and delivers a working speed up to 50 mm/min. A reduced price makes this high-precision, automatic, servo-driven CNC EDM drill more accessible. Features include a 7-inch color touchscreen, backup battery, powder coated frame, and versatile applications across aerospace, mold-making, and hard metal industries. Stock ready-first come, first served!

Applications & Surfaces for Advance EDM Drill Machine

This rare ADVANCE EDM DRILL MACHINE serves brilliantly in aerospace, tool manufacturing, mold making, and hard-metal drilling. Application methods include automatic, CNC touch-screen controlled drilling, ensuring unmatched precision. Its robust frame and slant worktable enable usage on workpieces up to 300mm high, delivering sublime surface finishes on metals such as steel, titanium, and tough alloys. The machine adapts perfectly to factory floors requiring high-speed, high-capacity, top-tier drilling operations.

Export Markets, Domestic Supply & Certifications

Our ADVANCE EDM DRILL MACHINE is ready for immediate dispatch to worldwide markets including Europe, Southeast Asia, and the Middle East. Quotation available for bulk orders. Major domestic markets in India benefit from a robust supply chain and quick stock ready to charge local industries. The machine is supplied with certifications for ISO quality, assured safety, and reliable performance, fulfilling both export and domestic compliance with modern industrial standards.

FAQ's of ADVANCE EDM DRILL MACHINE:

Q: How does the ADVANCE EDM DRILL MACHINE ensure high precision during drilling operations?

A: This machine features CNC control with a 7-inch color touchscreen and a servo motor drive, enabling accuracy up to 0.02 mm. Its centralized automatic lubrication and dielectric cooling systems also enhance precision and stability during operation.

Q: What application industries benefit most from using this EDM drill machine?

A: Major beneficiaries include aerospace, mold making, tool manufacturing, and hard metal fabrication sectors, where rapid and precise hole drilling is crucial.

Q: Where can this machine be installed and what are the surface requirements?

A: The drill machine is best installed on rigid factory floors, capable of supporting its 750 kg weight. It can be used on varied metal surfaces, thanks to its adaptable clamping and powder-coated frame.

Q: What is the process for obtaining a quotation and how quickly can the machine be supplied?

A: Quotation requests can be made directly to our export or domestic sales teams. With stock ready, most orders can be charged and dispatched promptly, minimizing lead times.

Q: What are the advantages of its automatic operating type for users?

A: Automatic operating type simplifies workflow, increases productivity, and reduces manual intervention while maintaining sublime control over hole size, depth, and placement during drilling.
