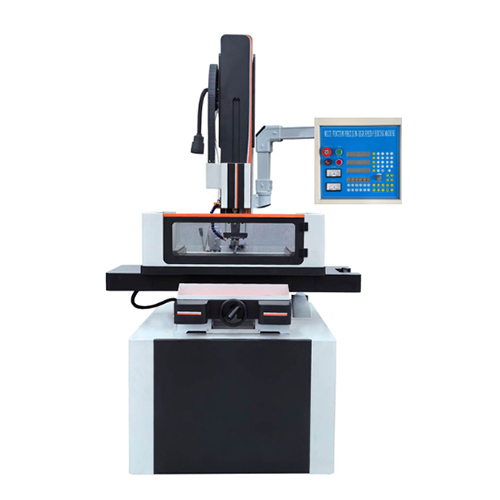

FDD703.80 ADVANCE EDM DRILL MACHINE

Name: FDD703.80 ADVANCE EDM DRILL MACHINE
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1472745 INR
Availability: InStock

Price 1472745 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDD703.80 ADVANCE EDM DRILL MACHINE Specification

Power Rating
3 kW

Production Capacity
High

Machine Type
EDM Drilling Machine

Lubricating System
Automatic Lubrication System

Operating Temperature
0-40C

Noise Level
Low (Below 70 dB)

Features
High Precision, Fast Drilling, Touchscreen Display, Digital Control

Motor Power
750 W

Voltage
220V / 380V

Connectivity Options
USB Port, LAN

Frequency
50 Hz / 60 Hz

Frame Type
Rigid Heavy Duty Frame

Cooling System
Water/Oil Based Cooling System

Model No
FDD703.80 Advance

Control System
CNC Control with Touchscreen Interface

Drive
Servo Motor

Accuracy
0.02 mm

Product Type
EDM Drill Machine

Technology
Electrical Discharge Machining (EDM)

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Surface Treatment
Paint Coated

Dimension (L*W*H)
1100 x 900 x 1700 mm

Weight (kg)
800 kg

Color
White & Black

Usage & Applications
Drilling Precision Holes in Conductive Materials

Tank Capacity
60 Liters

Display Type
12" Touchscreen LCD

Max Workpiece Weight
Up to 200 kg

Working Speed
0.5-50 mm/min

X/Y/Z Axis Travel
300/200/300 mm

Safety Features
Emergency Stop, Alarm System

Maximum Drilling Depth
300 mm

Electrode Clamping
Automatic

Rapid Feed Rate
Up to 2000 mm/min

Cutting Fluid Used
Deionized Water

Main Spindle Cooling
Yes

Electrode Diameter Range
0.3-3.0 mm

Maximum Current
30A

Spindle Speed
1200 rpm

Work Table Size
400 x 300 mm

Repeatability
0.01 mm

Positioning Accuracy
0.015 mm

Power Consumption
Low

Input Power
3.5 kVA

Protection System
Overload & Short Circuit Protection

FDD703.80 ADVANCE EDM DRILL MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1-2 Week

FDD703.80 ADVANCE EDM DRILL MACHINE About

Discover the FDD703.80 ADVANCE EDM DRILL MACHINE - a hot deal and an exclusive new release for professionals demanding invincible precision! Designed with a lustrous 12" touchscreen LCD and CNC digital control, this crackerjack EDM drilling machine delivers working speeds up to 50 mm/min and accommodates electrodes from 0.3-3.0 mm. With its robust heavy-duty frame, rapid feed rate, and high load capacity (200 kg), the FDD703.80 ensures unmatched repeatability, maximum drilling depth of 300 mm, and optimum safety features. Ideal for high-accuracy drilling in conductive materials, this powerhouse blends innovation, performance, and reliability.

Versatile Usage & Advanced Features

The FDD703.80 ADVANCE EDM DRILL MACHINE is designed for automatic CNC-operated drilling of precise holes in conductive materials. Its extra features include a lustrous 12-inch touchscreen LCD, automatic electrode clamping, and state-of-the-art overload and short circuit protection. The machine operates seamlessly with deionized water or oil, while the heavy-duty rigid frame ensures stable, high-capacity operations-making it perfect for industrial applications and high-efficiency production environments.

Professional Payment, Shipping & Sampling Policies

Quotations and proposal amounts for the FDD703.80 ADVANCE EDM DRILL MACHINE are provided upon request. The standard policy allows for samples to be handed over to prospective buyers when necessary, supporting evaluation before full purchase. FOB Port options are available for international shipments, ensuring smooth and secure logistics from our facilities to your location. Contact our team for detailed payment schedules and flexible solutions tailored to your business requirements.

FAQ's of FDD703.80 ADVANCE EDM DRILL MACHINE:

Q: How does the FDD703.80 Advance EDM Drill Machine achieve high precision in drilling tasks?

A: The FDD703.80 Advance EDM Drill Machine ensures high precision through servo motor-driven axes, CNC touchscreen control, and positioning accuracy of 0.015 mm, with repeatability up to 0.01 mm.

Q: What types of materials can be drilled using this EDM machine?

A: This machine is designed to drill precision holes in all conductive materials, including metals like copper, steel, and aluminum, using electrical discharge machining technology.

Q: Where can the FDD703.80 Advance be used effectively?

A: It is ideal for use in manufacturing facilities, tool rooms, and industrial production lines requiring accurate and fast drilling in hard or complex materials.

Q: What are the benefits of the machine's touchscreen LCD and CNC control system?

A: The advanced 12-inch touchscreen LCD and CNC control system provide intuitive operation, easy programming, and real-time monitoring, ensuring streamlined workflow and greater operator efficiency.

Q: What safety features are incorporated in the FDD703.80 Advance?

A: This machine incorporates overload and short circuit protection, an emergency stop button, and an alarm system to guarantee operator safety during all processes.
