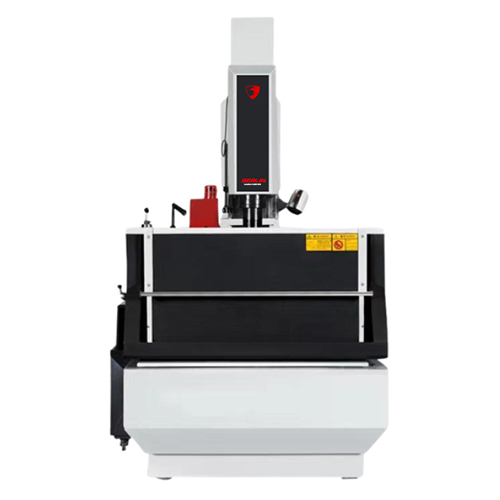

BED MOVEMENT CNC MIRROR EDM

Name: BED MOVEMENT CNC MIRROR EDM
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 2726712 INR
Availability: InStock

Price 2726712 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BED MOVEMENT CNC MIRROR EDM Specification

Motor Power
Servo motor, 1-2 kW

Operating Temperature
10-40C

Accuracy
Up to 2 m (micron-level)

Model No
Depends on manufacturer (e.g., EDM-860NC)

Frame Type
Heavy-duty rigid cast structure

Plastic Processed
Not Applicable - Metal EDM

Voltage
380V/415V 3-Phase

Drive
Servo motor drive

Connectivity Options
USB, LAN, RS-232 (varies by controller)

Lubricating System
Automatic lubrication unit

Power Rating
3~5 kW

Cooling System
Efficient integrated cooling system

Production Capacity
Designed for continuous operation

Noise Level
Below 60 dB

Frequency
50/60 Hz

Control System
CNC Controller (e.g., Mitsubishi, Siemens, custom)

Machine Type
EDM machine with bed movement

Features
Mirror finish, high precision, bed movement, CNC controlled

Product Type
CNC Mirror EDM (Electrical Discharge Machine)

Technology
CNC controlled, EDM technology

Power Source
Electric

Operating Type
Automatic

Power
Standard 3-5 kW (varies by model)

Pressure
Adjustable as per process requirements

Surface Treatment
Mirror finish capability

Dimension (L*W*H)
Approximately 1700 x 1200 x 2100 mm (model-specific)

Weight (kg)
Around 1500-2000 kg (model-specific)

Color
Black & White

Usage & Applications
Mould, die manufacturing, tool making, precision parts

Tank Capacity
Large work tank for extended operations

Working Speed
High precision, variable speed

Work Table Travel (X/Y/Z)
Approx. 400/300/200 mm

Display Type
Touchscreen color LCD

Optional Accessories
Rotary attachment, C-axis rotary table

Pulse Generator
High-performance digital pulse generator

Safety Features
Emergency stop, overload protection, coolant warnings

Max Load on Table
Up to 800 kg

Dielectric Fluid
Standard EDM oil

Software Support
G-code compatible, custom macros

Positioning Resolution
0.001 mm

Electrode Material Compatibility
Copper, graphite, tungsten

Max Workpiece Size
Up to 800 x 500 x 300 mm (varies by model)

BED MOVEMENT CNC MIRROR EDM Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1-2 Week

BED MOVEMENT CNC MIRROR EDM About

Buy Online the rare and top-rated BED MOVEMENT CNC MIRROR EDM-crafted for those who demand splendid accuracy and glorious production results. Designed with a prime heavy-duty rigid cast frame, this EDM machine supports a max load up to 800 kg and mirror finish capability. Its large work tank, automatic lubrication, and integrated cooling ensure continuous, extended operations. Compatible with copper, graphite, and tungsten electrodes, it boasts a high-performance digital pulse generator and advanced CNC touch control for superior micron-level precision in mold, die, and precision part making.

Application Sites, Advantages & Special Features

BED MOVEMENT CNC MIRROR EDM is perfectly suited for mould, die manufacturing, tool making, and precision parts production. Its distinct advantages are high precision, mirror finish capability, and a spacious work tank tailored for uninterrupted operation. Special features include CNC control, servo motor drive, custom control systems, and outstanding positioning resolution. This prime equipment thrives in environments demanding precision and reliability, making it ideal for cutting-edge workshops and industrial applications needing faultless results.

Certifications, Export Markets & Sample Availability

BED MOVEMENT CNC MIRROR EDM holds leading certifications to ensure trust and quality. Rated highly in main export markets across India, the Middle East, Asia, and Europe, these EDM machines are backed by reliable delivery, swift handover and excellent after-sales support. Samples are available on request to allow customers to evaluate the splendid performance and prime features in their facility before full-scale purchase. Expect top-tier service, seamless rate negotiation, and a smooth export experience with this rare CNC solution.

FAQ's of BED MOVEMENT CNC MIRROR EDM:

Q: How does the BED MOVEMENT CNC MIRROR EDM achieve such high precision?

A: The machine utilizes an advanced CNC controller, servo motor drive, and high-performance digital pulse generator to achieve micron-level positioning and mirror finishes on workpieces.

Q: What materials is the machine compatible with for electrode use?

A: It is compatible with copper, graphite, and tungsten electrodes, allowing flexibility for various EDM processes and applications.

Q: Where can this EDM machine be applied most effectively?

A: It excels in mould and die manufacturing, tool making, and precision parts production, especially in industries that require high accuracy and prime surface finishes.

Q: When can samples of this EDM machine be delivered?

A: Samples are available upon request, and delivery timelines are typically coordinated promptly upon order confirmation, ensuring swift handover to customers.

Q: What safety and process monitoring features are included?

A: Safety features include an emergency stop, overload protection, coolant warnings, and automatic lubrication to ensure secure and reliable operation at all times.
