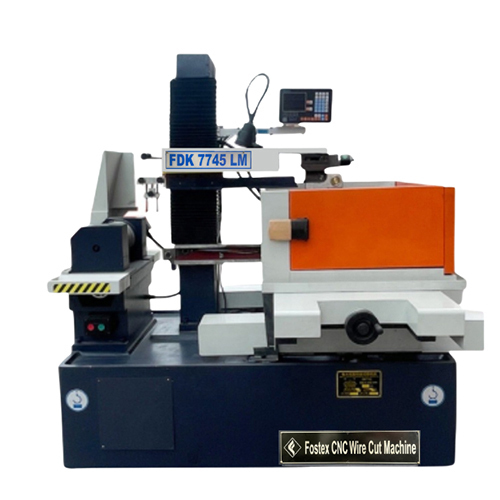

FDK-7745 FDK Series EDM Wire Cut

Name: FDK-7745 FDK Series EDM Wire Cut
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 923133 INR
Availability: InStock

Price 923133 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FDK-7745 FDK Series EDM Wire Cut Specification

Model No
FDK-7745

Machine Type
EDM Wire Cut

Power Rating
3 kW

Control System
CNC Controller Display

Drive
Servo Drive

Noise Level
Low

Operating Temperature
5C to 40C

Cooling System
Water-based coolant

Connectivity Options
USB, LAN

Accuracy
0.005 mm

Production Capacity
Custom Job Size

Features
Smooth finish, auto wire feeding, touchscreen display, energy-efficient

Lubricating System
Automated Lubrication

Frequency
50 Hz

Voltage
220V / 380V

Frame Type
Rigid Cast Iron Frame

Motor Power
3 kW

Product Type
EDM Wire Cut Machine

Technology
Electric Discharge Machining (EDM)

Power Source
Electric

Operating Type
CNC

Power
3 kW (approx)

Surface Treatment
Paint Coated

Dimension (L*W*H)
Approx. 1800 x 1300 x 1750 mm

Weight (kg)
1600 kg (approx)

Color
Blue and Orange

Usage & Applications
For precision cutting of metal components using wire EDM process

Table Size
770 x 450 mm

Wire Diameter
0.15 mm - 0.25 mm

Machine Base
Heavy Duty Base for Vibration Dampening

Working Speed
60-100 mm2/min (depends on work material)

Positioning Accuracy
0.005 mm

Max. Workpiece Weight
450 kg

Reuse Wire Capability
Available

Safety Features
Emergency Stop, Overload Protection, Door Interlocks

Display
LED/LCD Digital Interface

Max. Cutting Taper
3/100 mm

Automatic Wire Threading
Yes

Environment Compliance
ROHS & CE Certified

Input Power Phase
Single / Three Phase

Max. Workpiece Height
300 mm

Working Fluid
Deionized Water

User Interface Language
Multilingual Support

FDK-7745 FDK Series EDM Wire Cut Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1-2 Week

FDK-7745 FDK Series EDM Wire Cut About

Experience the ultimate in precision machining with the sought-after FDK-7745 FDK Series EDM Wire Cut machine. Take advantage of this special offer and enhance your cutting performance with majestic accuracy-up to 0.005 mm! This powerful CNC wire EDM boasts a robust heavy-duty frame for optimal vibration dampening and supports workpieces up to 450 kg on a spacious 770 x 450 mm table. Enjoy bargain energy efficiency and seamless operation with auto wire feeding, intuitive digital interface, multilingual support, and stringent safety features. Perfect for manufacturers seeking reliable and consistent results!

Unmatched Performance and Cutting Direction

The FDK-7745 EDM Wire Cut is engineered for the precision cutting of metal components using deionized water as the application medium. Its automated lubricating system, smooth finish, and advanced CNC controls provide effortless direction of use. Primary competitive advantages include an energy-efficient power rating, auto wire threading, a rigid cast iron frame, and user-friendly touchscreen display-making it the ideal choice for both high-volume production and custom job sizes in demanding metalworking environments.

Certifications, Packaging & Export Excellence

Certified to ROHS and CE standards with an environmentally compliant package, the FDK-7745 ensures reliable performance and safety. Each unit is securely packaged for drop-off, ensuring complete order integrity until arrival. Our streamlined order completion and rate processing make international transactions smooth and efficient. With a robust presence in markets across India and around the world, we consistently deliver on time, supporting distributors, suppliers, and traders seeking superior EDM technology for metal component fabrication.

FAQ's of FDK-7745 FDK Series EDM Wire Cut:

Q: How does the FDK-7745 EDM Wire Cut maintain such high positioning accuracy?

A: The FDK-7745 is built with a servo drive system, a CNC controller display, and a rigid cast iron frame, which together ensure precise movement and minimal vibrations, resulting in a positioning accuracy of up to 0.005 mm.

Q: What types of workpieces can be processed with this wire EDM?

A: This machine can handle a wide range of metal workpieces, with a maximum size of 770 x 450 mm, height up to 300 mm, and weight up to 450 kg, making it suitable for various custom manufacturing jobs.

Q: Where is the FDK-7745 primarily exported and supplied?

A: The FDK-7745 is exported and supplied not only throughout India but also to major markets worldwide, serving as a key product for manufacturers, traders, and wholesalers requiring precision EDM solutions.

Q: What are the safety features integrated into the FDK-7745?

A: Safety is paramount with features such as an emergency stop button, overload protection, and door interlocks, ensuring operator safety and machine reliability during every operation.

Q: How does the automatic wire threading process work on this machine?

A: Automatic wire threading on the FDK-7745 streamlines the setup by automatically feeding the wire through the workpiece, minimizing manual intervention and downtime, and thus increasing production efficiency.

Q: What are the benefits of the reusable wire capability?

A: Reusable wire capability helps reduce operational costs and waste by allowing the wire to be used more efficiently, which is especially beneficial in high-volume production settings.
