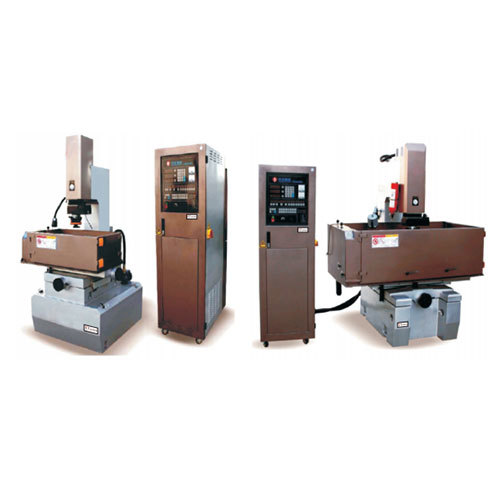

ZNC Electric Discharge Tooling Machine

Name: ZNC Electric Discharge Tooling Machine
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 852000 INR
Availability: InStock

Price 852000 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

ZNC Electric Discharge Tooling Machine Specification

Frequency
50/60 Hz

Machine Type
Tooling EDM

Drive
Servo Motor

Operating Temperature
5-45C

Accuracy
0.01 mm

Country Of Origin
india

Model No
ZNC-450

Frame Type
Heavy Duty Cast Iron

Voltage
380V

Cooling System
Oil-based Dielectric Circulation

Connectivity Options
Standard Interface (No Ethernet/USB)

Noise Level
<80 dB

Features
High Stability, Fine Finishing, Digital Display Panel

Lubricating System
Automatic

Production Capacity
1-10 moulds/day

Power Rating
3 kW

Motor Power
1.5 kW

Product Type
Cutting Machine

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
3 kVA

Surface Treatment
Coated

Dimension (L*W*H)
1050 x 950 x 2200 mm

Weight (kg)
1500 kg

Color
Blue/Grey

Usage & Applications
Industrial

Pulse Power
Up to 80A

Resolution
0.005 mm

Table Size
600 x 400 mm

Installation Type
Floor Mounted

Standard Accessories
Tool Set, Flushing System, Work Lamp, Oil Filter

Tank Size
950 x 700 x 350 mm

Display Type
Digital/LED

Travel (X/Y/Z)
400 x 300 x 200 mm

Power Supply Phase
3-Phase

Ram Type
Precision Vertical Ram with Linear Guideways

Optional Accessories
CNC Upgrade Kit, Chiller Unit

Input Method
Keypad

Flush Type
Automatic Pump Circulation

Max Workpiece Weight
500 kg

Safety Features
Overload Protection, Emergency Stop

Max Electrode Weight
80 kg

ZNC Electric Discharge Tooling Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cheque

Supply Ability
10 Pieces Per Month

Delivery Time
6 Week

Sample Available
Yes

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

Certifications
ISO Certified

ZNC Electric Discharge Tooling Machine About

NAME: ZNC edm FEATURES Low machine running cost Low machine maintenance Function of taper processing Functions of interpolation of straight line and circular arc Automatic center find, edge find operation and pulse at wire break Function of memorizing when power off and auto-stop after processing Auto lock after giving run command Good rigidity, running placidly, strong function, convenient and reliable operation C-type column, T-type bed and "pyramid" type cross slide structure design Water tank with multi-stage filtration and high-pressure pump Servo motor with mechanical limit and travel limit Fast programming function of complex multi-hole graphics Multi-tasking capability in front and back stag

Precision Engineering for Industrial Demands

Built with a heavy-duty cast iron frame and precision vertical ram, the ZNC-450 withstands rigorous machining environments while consistently delivering fine surface finishes. Its digital display and ZNC controller enable accurate adjustments, supporting complex mould production with outstanding repeatability and stability.

Superior Safety and User-Friendly Operation

Operator safety is ensured through advanced features like overload protection and an emergency stop. The automatic lubrication, flushing, and oil-based cooling systems streamline maintenance, while the intuitive digital controls make operation accessible for users at all skill levels.

Versatile Applications and Expandability

Designed for flexibility, the ZNC-450 suits diverse manufacturing needs. Standard accessories-like tool sets and work lamps-are complemented by optional upgrades such as CNC kits and chiller units, broadening its utility. This floor-mounted solution meets the high-volume needs of India's tooling sector.

FAQ's of ZNC Electric Discharge Tooling Machine:

Q: How does the ZNC Electric Discharge Tooling Machine ensure precision during operation?

A: The machine employs a precision vertical ram with linear guideways, a digital/LED display for accurate control, and a ZNC controller that allows adjustments with a resolution of 0.005 mm. These features enable the ZNC-450 to achieve a machining accuracy of up to 0.01 mm.

Q: What types of workpieces and electrodes is the ZNC-450 capable of handling?

A: It is engineered to support electrodes weighing up to 80 kg and workpieces up to 500 kg, making it suitable for a variety of tooling and mould-making applications in industrial environments.

Q: When should the standard and optional accessories be used?

A: Standard accessories like the tool set, flushing system, work lamp, and oil filter are integral for regular operation and maintenance. Optional accessories, such as the CNC upgrade kit or chiller unit, can be added to meet advanced operational needs or expand the machine's capabilities.

Q: Where can the ZNC-450 be installed, and what are its installation requirements?

A: The ZNC-450 is designed for floor-mounted installation in industrial settings with access to a 3-phase 380V power supply. Ensure an area of at least 1050 x 950 x 2200 mm for safe and efficient operation.

Q: What is the process for operating this EDM machine?

A: Operators input machining parameters via the keypad on the digital panel. The automatic pump circulates dielectric oil for flushing, and the machine performs precision discharges to fabricate moulds or tooling components. Built-in safety and lubrication features automate much of the process.

Q: How does the ZNC-450 benefit manufacturers in terms of productivity and quality?

A: With a production capacity of 1-10 moulds per day, the ZNC-450 allows for high-volume, quality output with minimal downtime. Its fine finishing capability and automatic systems reduce manual intervention, enhancing both efficiency and product quality.
