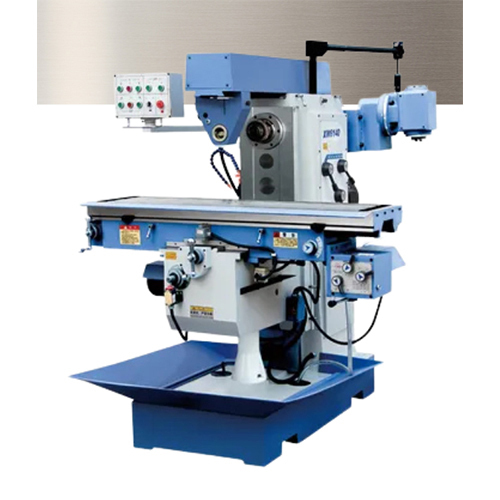

BXW6036A Universal Knee Type Milling Machine

Send Inquiry

Request To Call Back

BXW6036A Universal Knee Type Milling Machine

Get a Price/Quote

MOQ : 1 Piece

BXW6036A Universal Knee Type Milling Machine Specification

Motor Power
4 kW

Machine Type
Universal Knee Milling

Frequency
50 Hz

Drive
Gear Drive

Frame Type
Cast Iron Body

Accuracy
0.05 mm

Voltage
380 V

Features
Universal Swivel Table, Heavy-duty Structure, Precise Feed, Dovetail Guideways

Lubricating System
Centralized Lubrication

Noise Level
75 dB

Model No
BXW6036A

Production Capacity
Depends on Operation/Material

Control System
Manual Controls

Power Rating
4 kW

Cooling System
Integrated Coolant System

Operating Temperature
5C - 40C

Product Type
Universal Knee Type Milling Machine

Technology
Conventional/Manual Milling

Power Source
Electric

Operating Type
Semi-Automatic/Manual

Power
4 kW

Surface Treatment
Painted

Dimension (L*W*H)
2550 x 2150 x 1780 mm

Weight (kg)
2600 kg

Color
Blue and White

Usage & Applications
Milling, Drilling, Cutting, Slotting, Industrial Machining

Coolant Pump Power
0.09 kW

Floor Space
2650 x 2200 mm

Machine Structure
Heavy-duty, High-stability Frame

Table Size
1320 x 360 mm

Maximum Table Travel (X/Y/Z)
900/345/420 mm

Number of Spindle Speeds
18 Steps

Table Load Capacity
500 kg

Working Speed
Table Feed: 30-720 mm/min

Swivel Angle of Table
45

Applicable Materials
Steel, Alloy, Non-ferrous Metals, Plastics

Distance from Spindle Nose to Table Surface
30-450 mm

Spindle Taper
ISO 50

Packing Type
Standard Export Packing

Main Spindle Speed Range
30-1500 rpm

BXW6036A Universal Knee Type Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1-2 Week

BXW6036A Universal Knee Type Milling Machine About

Experience the exclusive BXW6036A Universal Knee Type Milling Machine-an exceptionally sought-after masterpiece acclaimed throughout the machining industry. Famed for its heavy-duty, high-stability frame and universal swivel table, this popular model caters to professionals seeking precision and dependability. With its impressive specs-ISO 50 spindle taper, 18-speed steps, and outstanding table capacity-the BXW6036A is quickly becoming the preferred solution for challenging industrial machining tasks. Secure this elite, limited-availability equipment today as the current offer is ending soon!

Versatile Application and Usage for Industry Professionals

The BXW6036A Universal Knee Type Milling Machine is ideal for tasks including milling, drilling, cutting, and slotting of steel, alloys, non-ferrous metals, and plastics. Used predominantly by skilled machinists, industrial manufacturers, repair workshops, and engineering firms, this masterpiece supports both manual and semi-automatic operation modes. Its versatile usage type and robust performance make it perfect for custom fabrication, prototyping, and high-demand precision machining in diverse industrial sectors.

Sample Policy, Payment, and Domestic Market Options

We offer a customer-oriented sample policy for the BXW6036A, ensuring that samples are dispatched promptly and securely. Transportation can be arranged as per buyer preference to facilitate smooth delivery. Flexible payment terms are provided to accommodate a variety of purchasing needs. The main domestic market includes major metropolitan and industrial regions across India, where quick, reliable after-sales support is readily available to every customer.

FAQ's of BXW6036A Universal Knee Type Milling Machine:

Q: How does the BXW6036A Universal Knee Type Milling Machine enhance machining accuracy?

A: The BXW6036A features precise feed dovetail guideways, centralized lubrication, and a universal swivel table, all contributing to exceptional machining accuracy with an impressive tolerance of 0.05 mm.

Q: What is the process for ordering and receiving the BXW6036A machine?

A: To order the BXW6036A, customers can connect with our sales team, after which the machine will be dispatched in standard export packing. We offer organized transportation and support throughout the delivery process.

Q: Where is the BXW6036A primarily used and who benefits most from it?

A: This milling machine is mainly utilized in industrial sectors, manufacturing facilities, and repair workshops. Professionals such as machinists, mechanical engineers, and fabrication specialists gain significant benefit from its precise operation and versatility.

Q: What applications can the BXW6036A handle efficiently?

A: The machine excels in milling, drilling, cutting, and slotting operations across a range of materials, including steel, alloys, non-ferrous metals, and plastics-making it a highly adaptable tool in industrial machining.

Q: How does the integrated cooling and lubrication system benefit users?

A: The integrated coolant and centralized lubrication system ensures optimal machine performance and longevity, minimizing wear during intensive operations and enhancing user efficiency.
