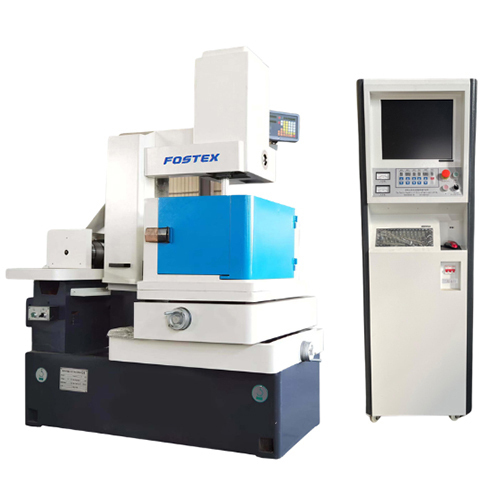

FK7745 Super Series EDM Wire Cut

Name: FK7745 Super Series EDM Wire Cut
Brand: BERLIN MACHINERIES PRIVATE LIMITED
Price: 1115231 INR
Availability: InStock

Price 1115231 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FK7745 Super Series EDM Wire Cut Specification

Drive
Servo Motor

Operating Temperature
10 - 40C

Power Rating
3 kW

Voltage
380 V

Noise Level
Low

Production Capacity
12 hours/day continuous

Lubricating System
Automatic Lubrication

Features
Compact design, high precision cutting, user-friendly interface

Frame Type
Heavy-duty cast iron frame

Accuracy
0.003 mm

Machine Type
EDM Wire Cut

Cooling System
Water Based

Connectivity Options
USB, LAN

Motor Power
1.5 kW

Frequency
50/60 Hz

Control System
CNC

Model No
FK7745

Product Type
EDM Wire Cut Machine

Technology
Super Series EDM

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Surface Treatment
Coated/Polished

Dimension (L*W*H)
1800 x 1400 x 1900 mm

Weight (kg)
1500 kg

Color
White and Blue

Usage & Applications
Precision metal cutting, Tool and die making, Mold manufacturing

Wire Diameter
0.15 - 0.3 mm

Max Workpiece Size
770 x 450 x 250 mm

Display Type
Color LCD Touch Screen

Flush Type
High pressure constant water flush

Electrical Consumption
Less than 4 kW/hr

Table Travel (X/Y/Z)
450 x 350 x 250 mm

Supported File Formats
DXF, ISO NC code

Operator Interface
Ergonomic panel with multi-language support

Installation Space Required
2200 x 1600 x 2200 mm

Memory Capacity
8 GB internal memory

Protection Systems
Overload and short-circuit protection

Cutting Taper
6 (at 80 mm thickness)

Compatible Software
AutoCAD, CAM systems

Working Speed
100 mm2/min (max)

Wire Feeding Mechanism
Automatic tension & feeding

FK7745 Super Series EDM Wire Cut Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1-2 Week

FK7745 Super Series EDM Wire Cut About

Experience rare innovation with the FK7745 Super Series EDM Wire Cut, a prime choice for those seeking exclusivity and pristine performance in precision metal cutting. This praiseworthy machine stands out with automatic wire tension, color LCD touch screen, and CNC capability for unmatched accuracy-delivering savings through efficient power use (less than 4 kW/hr) and low maintenance. Compatible with AutoCAD and CAM systems, its robust cast iron frame and compact footprint make it an exclusive fit for tool, die, and mold manufacturers demanding only the best.

Competitive Advantages & Commercial Applications of FK7745 Super Series

The FK7745 Super Series EDM Wire Cut offers competitive superiority with a high precision of 0.003 mm and user-friendly multi-language interface. Its exclusive automatic lubrication, water-based cooling, and ergonomic panel simplify operation and maintenance. Praiseworthy for use in precision metal cutting, tool and die production, and mold manufacturing, this machine promises reliable output in rapid industrial settings. To use, operators simply program designs, load the workpiece, and let the automatic CNC system handle seamless, pristine cuts.

Supply Ability, Delivery, and Payment Terms for FK7745 Super Series

With a production capacity enabling prime supply ability, orders for the FK7745 Super Series EDM Wire Cut are packed and dispatched efficiently. Delivery is typically completed within an industry-leading timeframe, ensuring your order completion runs on schedule. Exclusive, flexible payment terms can be tailored for wholesalers, suppliers, and service providers in India. Each unit is securely packed and delivered as per customer requirements, prioritizing safe arrival and excellent post-dispatch support for enduring value.

FAQ's of FK7745 Super Series EDM Wire Cut:

Q: How does the FK7745 Super Series EDM Wire Cut ensure high-precision results?

A: The FK7745 achieves high-precision cutting with CNC control, automatic wire feeding, and a cutting accuracy of 0.003 mm. Its robust cast iron frame and water-based cooling system also enhance cutting quality.

Q: What file formats and software are compatible with the FK7745 Wire Cut machine?

A: This machine supports DXF and ISO NC code file formats and is compatible with AutoCAD and various CAM systems, enabling seamless design import and processing.

Q: When can I expect delivery after placing an order for the FK7745 Super Series?

A: Delivery times are competitive and orders are dispatched promptly after confirmation. The exact timeline depends on order volume and destination, but timely order completion is prioritized.

Q: Where is the FK7745 Super Series EDM Wire Cut best utilized commercially?

A: The FK7745 is ideal for industries involved in precision metal cutting, tool and die making, and mold manufacturing, ensuring exclusive solutions for demanding production requirements.

Q: What benefits does the Super Series EDM Wire Cut offer to industrial operators?

A: Operators benefit from its ergonomic, user-friendly interface, automatic lubrication, low noise operation, and power-efficient, precise cutting capability, contributing to overall savings and productivity.

Q: How is the FK7745 EDM Wire Cut machine packed for delivery?

A: Each machine is securely packed in sturdy, protective materials to minimize risk during transport, ensuring pristine condition upon delivery to your facility.
