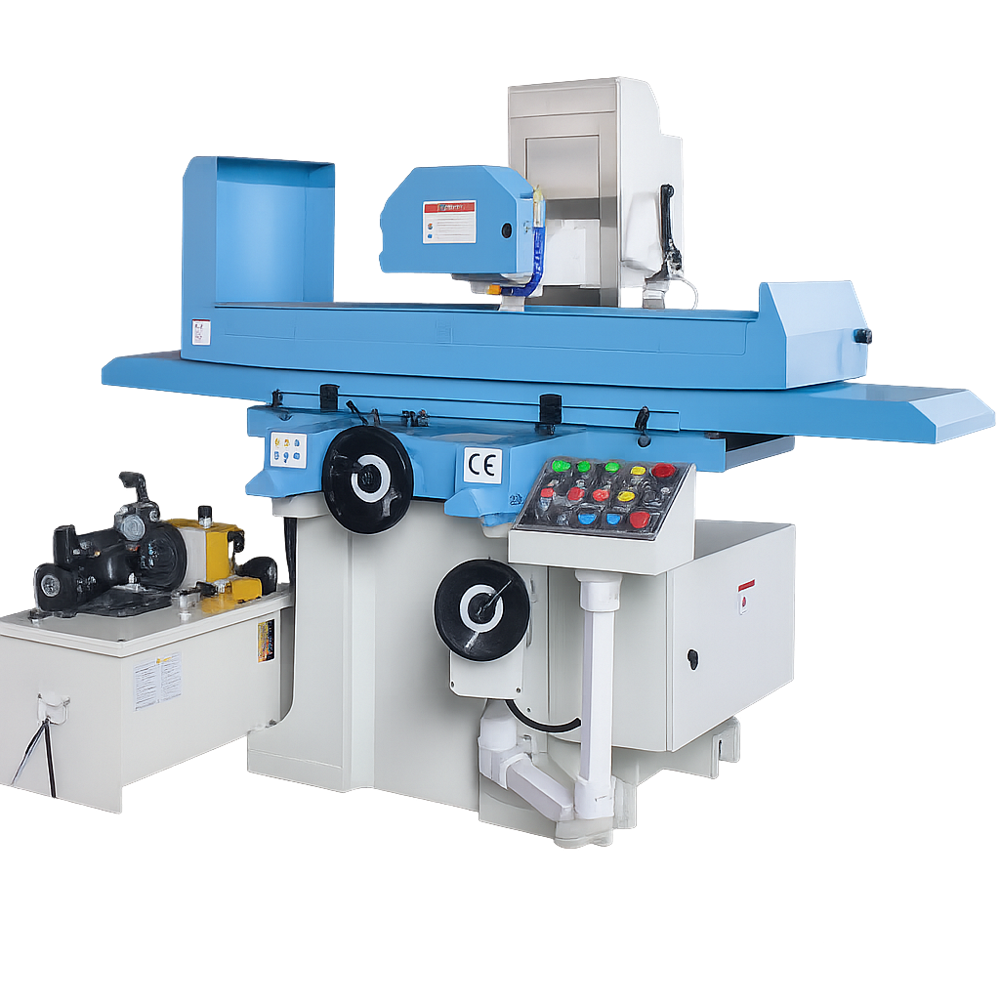

Double Column Surface Grinding Machine

Product Description

Key Features:

• Moving column type hydraulic surface grinder machine.
• Constructed using naturally seasoned materials equivalent to MEEHANITE grade, providing optimal ribbing for enhanced stability.
• Maximized vibration damping capacity for superior rigidity-to-weight ratio.
• Utilizes the latest design with all three axes operating independently.

Z Axis (Vertical Feed):

• Vertical feed with an increment of 0.002 mm as standard.
• Spindle housing driven by an AC induction motor via a precision trapezoidal lead screw with nut.

X Axis (Grinding Table):

• Grinding table travels on prism-flat ground Turcite-B lined guide ways.
• Table design adheres to the European standard ratio of 2:1 for column-moving configuration, ensuring minimal overhang.

Y Axis (Auto Cross Feed):

• Auto cross feed with incremental variable feed.
• Cross slide with column driven by an AC induction motor and drive mechanism.

Additional Features:

• Auto centralized lubrication system for ease of maintenance.
• Grinding spindle cartridge assembled with imported super precision bearings, grease-packed with high-quality grease for lifelong trouble-free service
